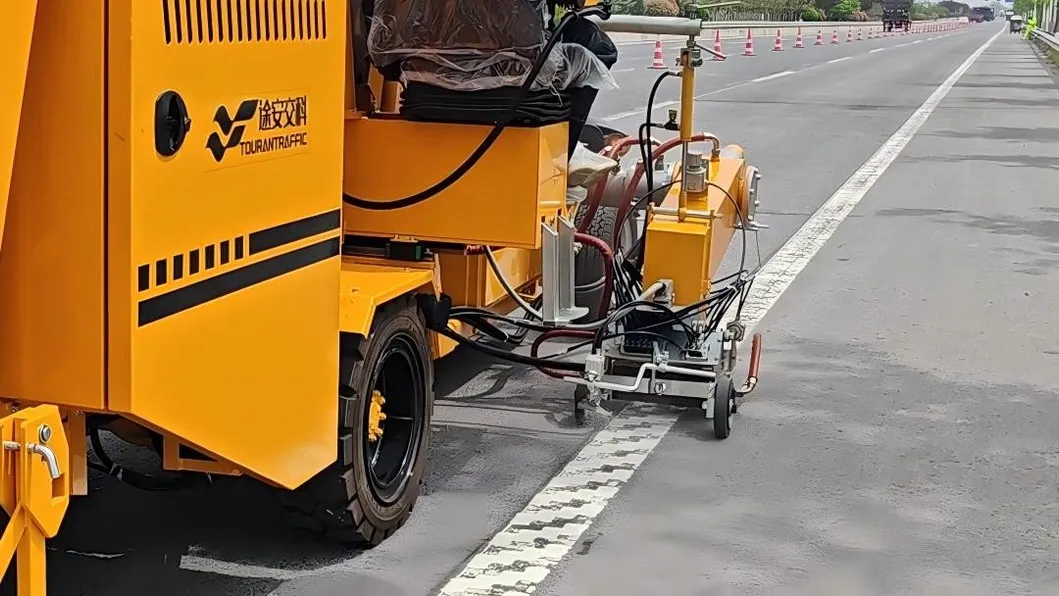

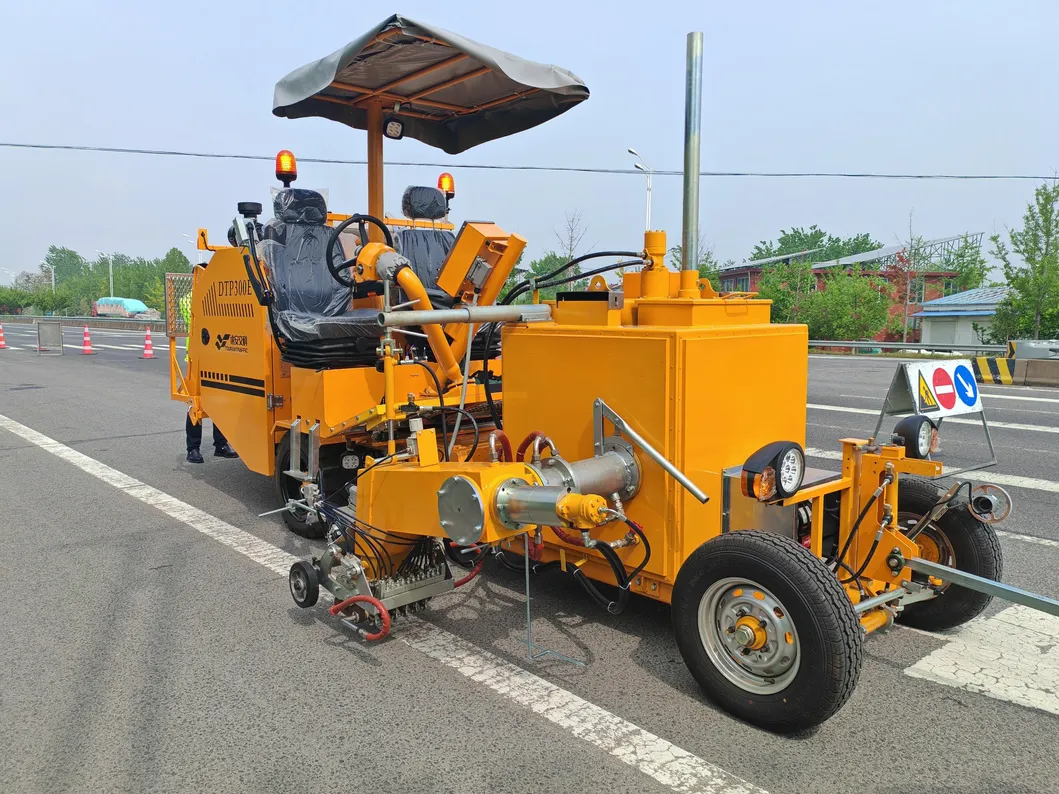

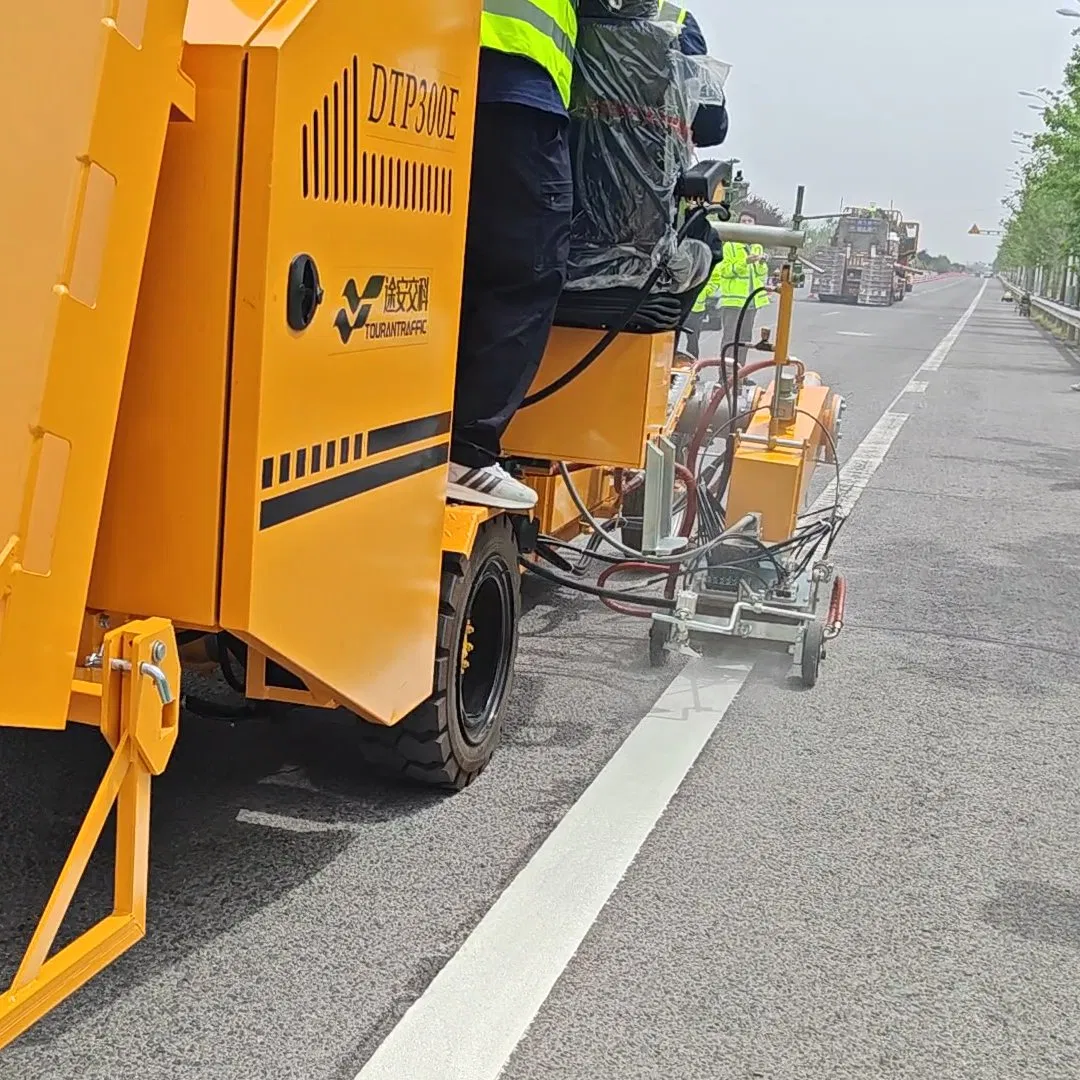

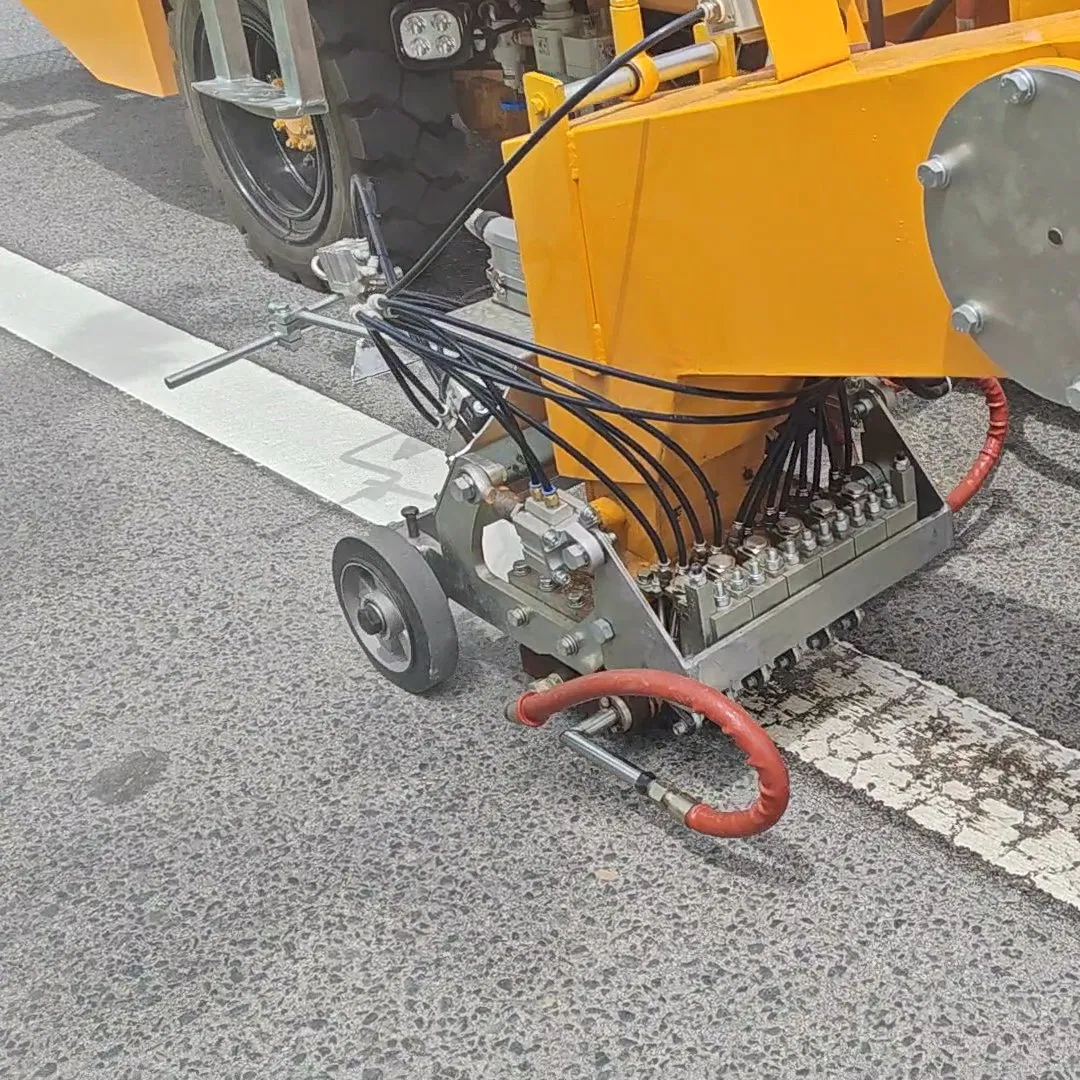

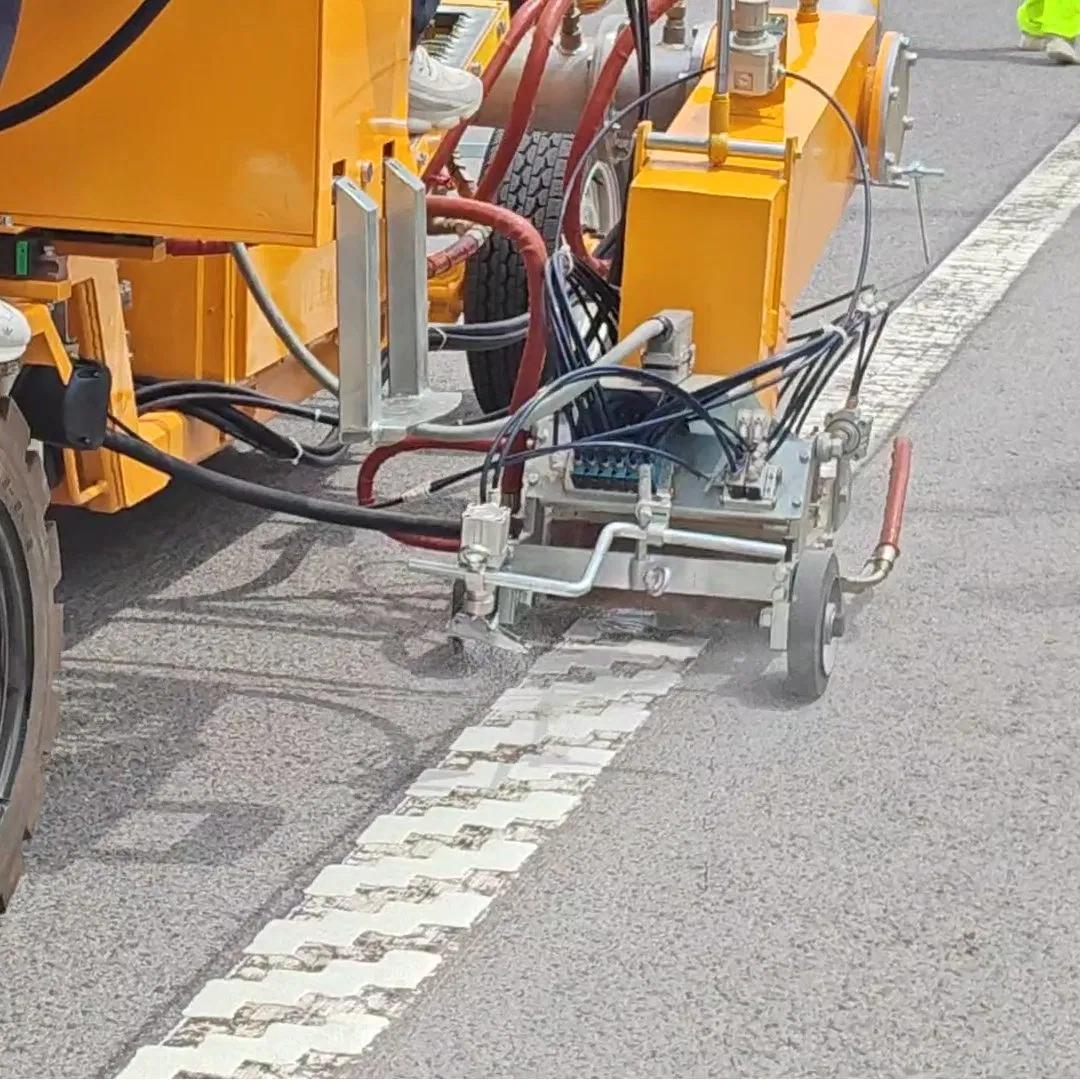

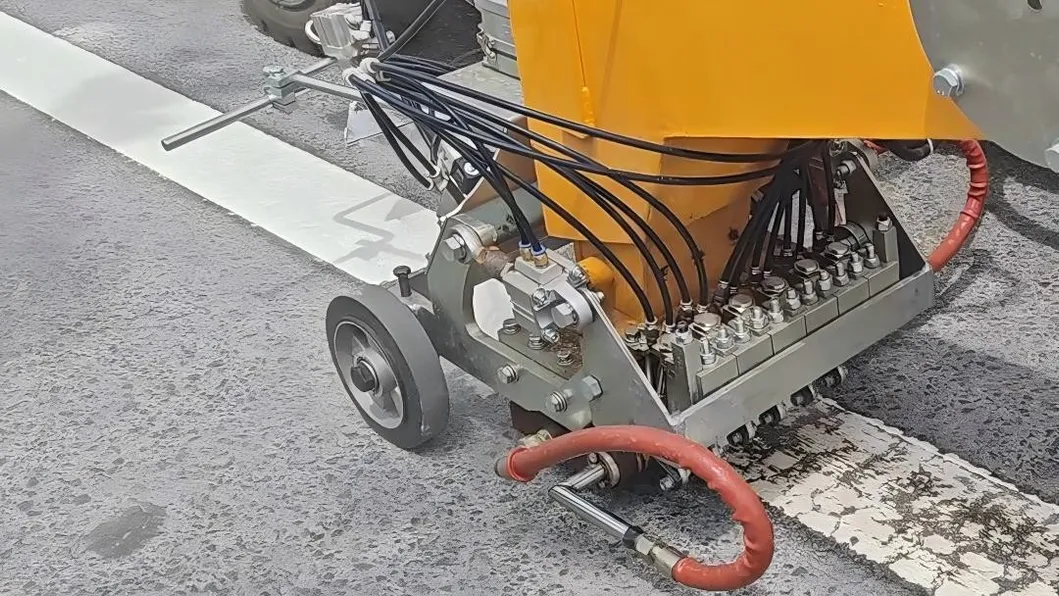

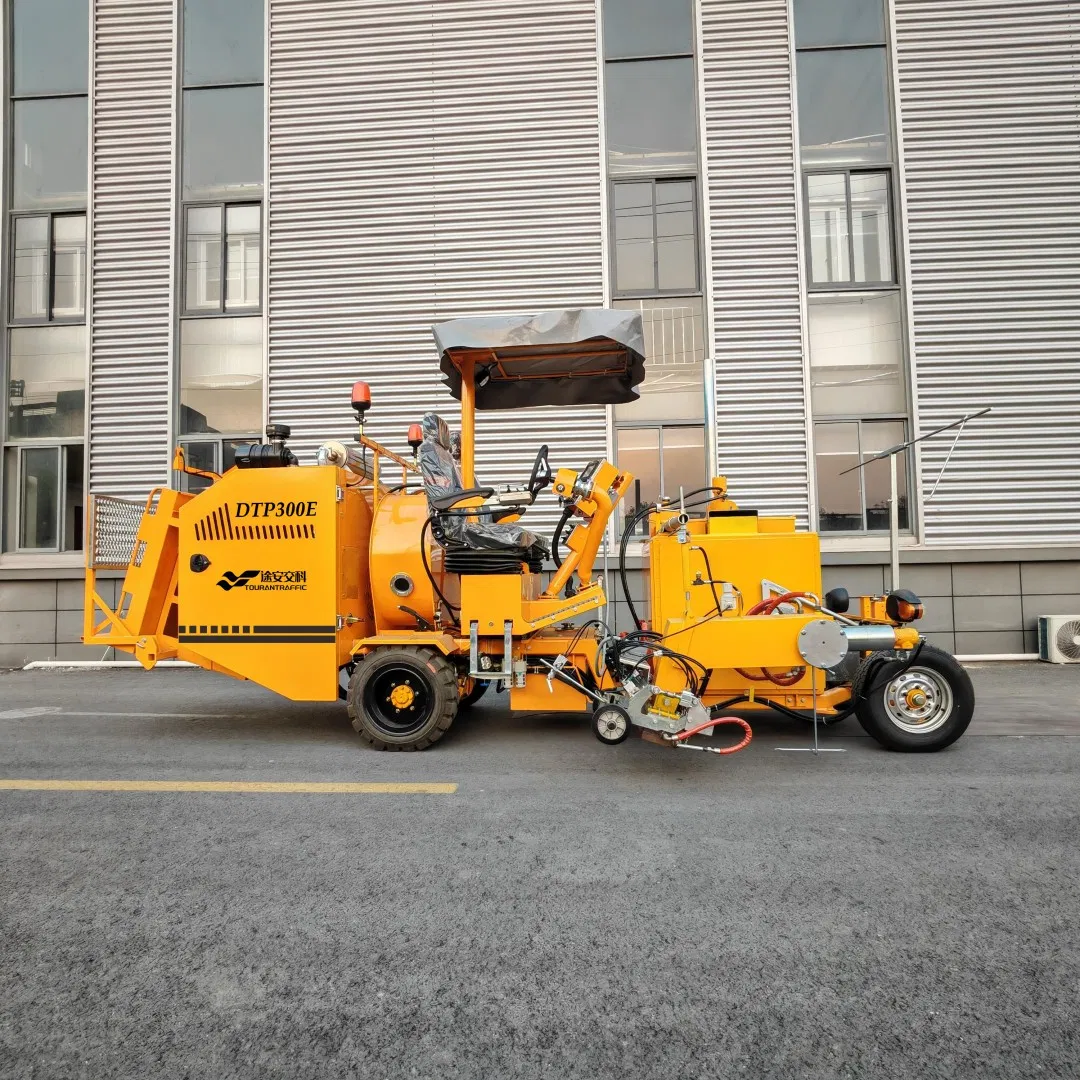

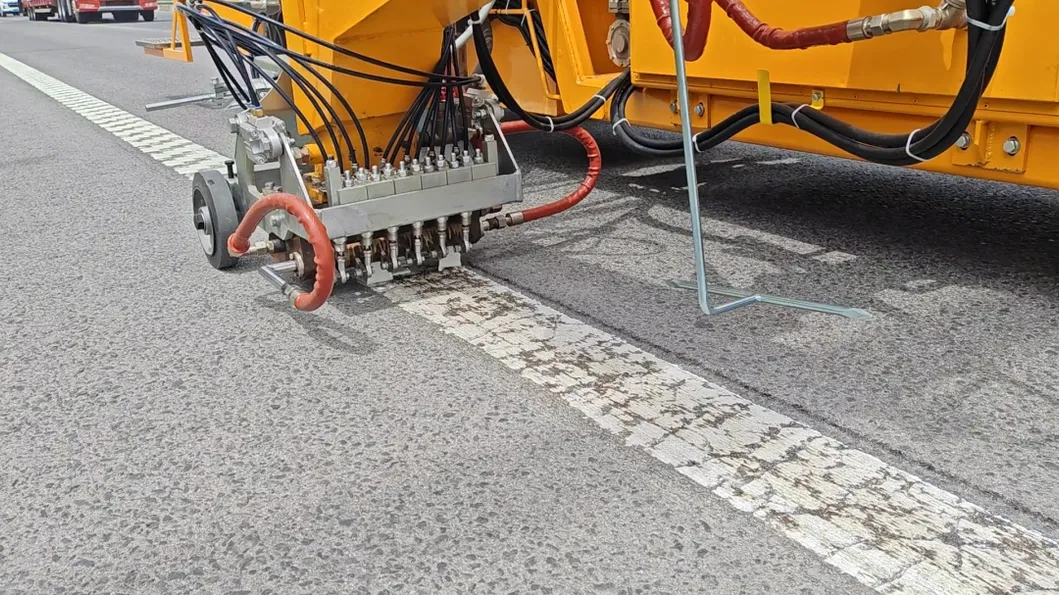

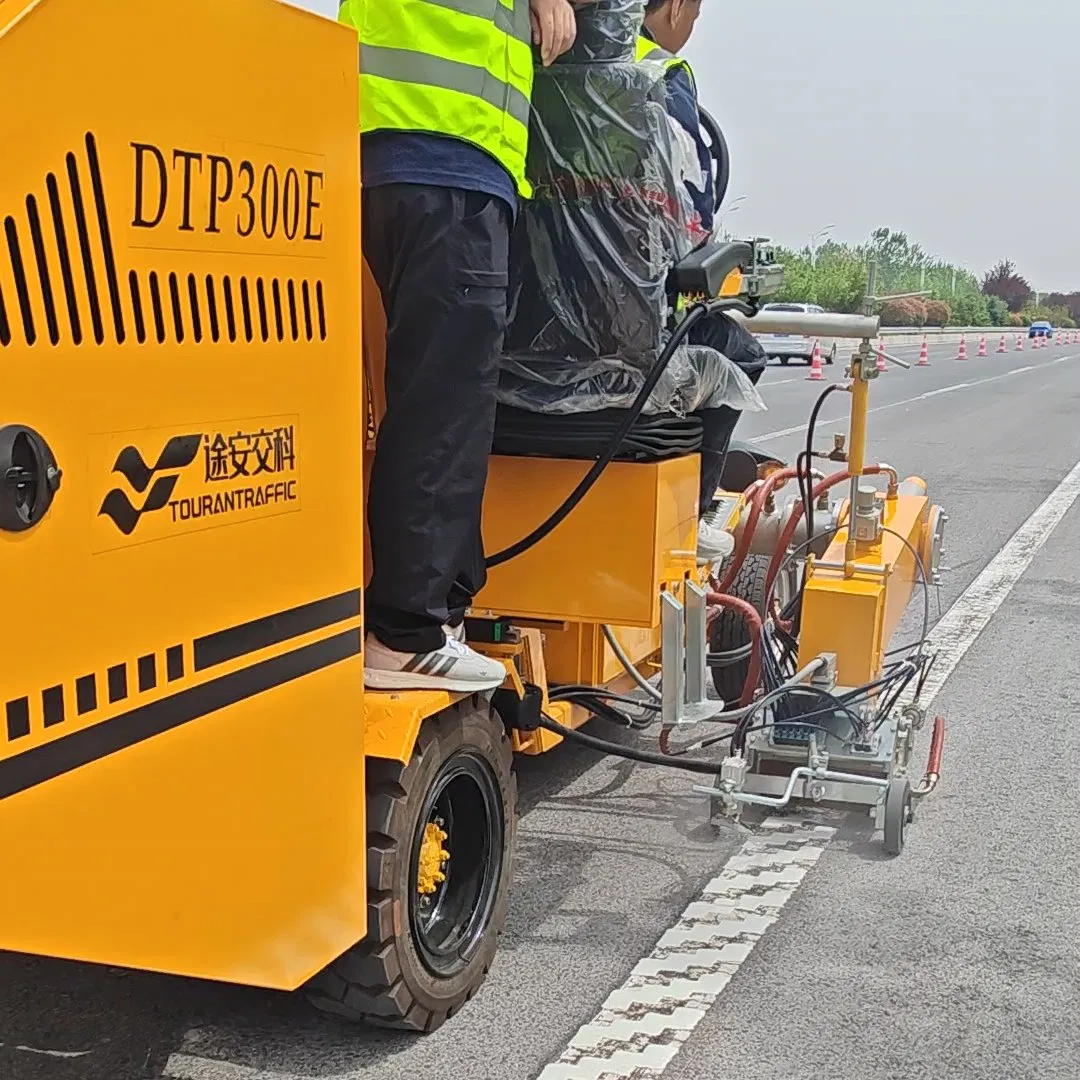

The DTP300E is a medium-size ride-on thermoplastic extrusion road marking machine designed for small to medium scale jobs. It is highly flexible and efficient for urban roads and interurban stretches. The system provides thermoplastic flat lines or customizable square lines, making it an ideal choice for varied construction needs.
| Feature | Technical Details |
|---|---|

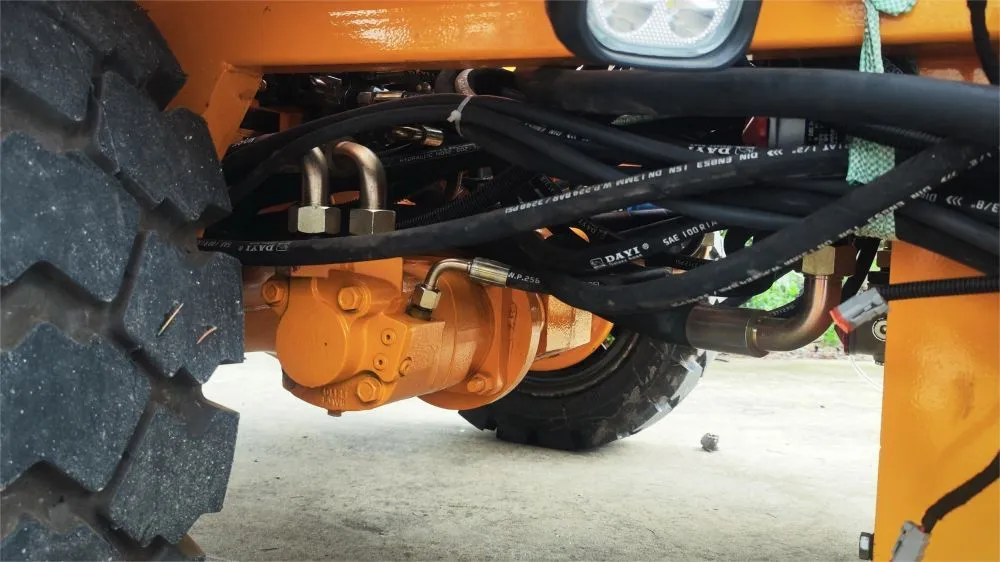

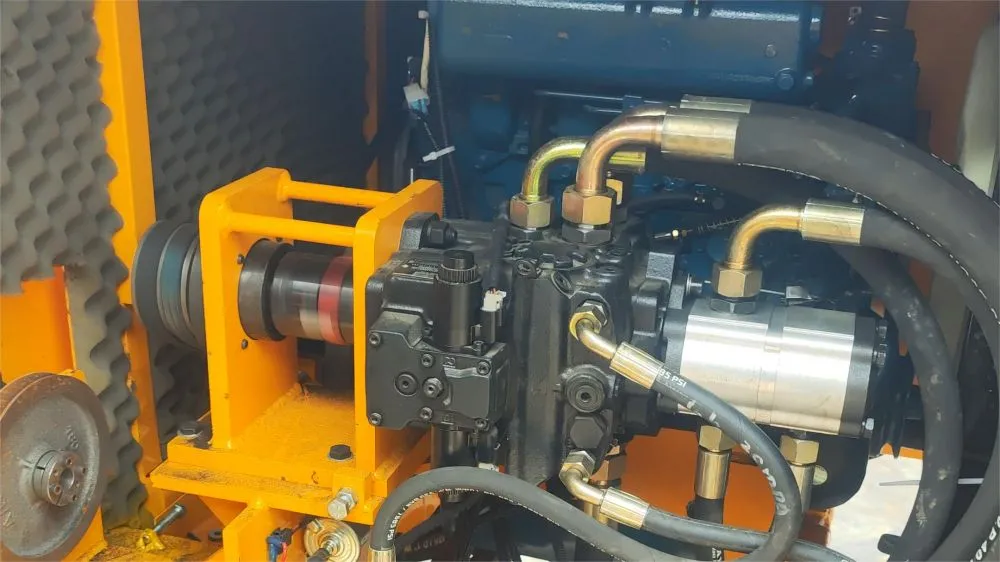

| Powerful Driving | High-performance Kubota 49.2kw diesel engine with Danfoss hydraulic gear pump for stepless transmission. |

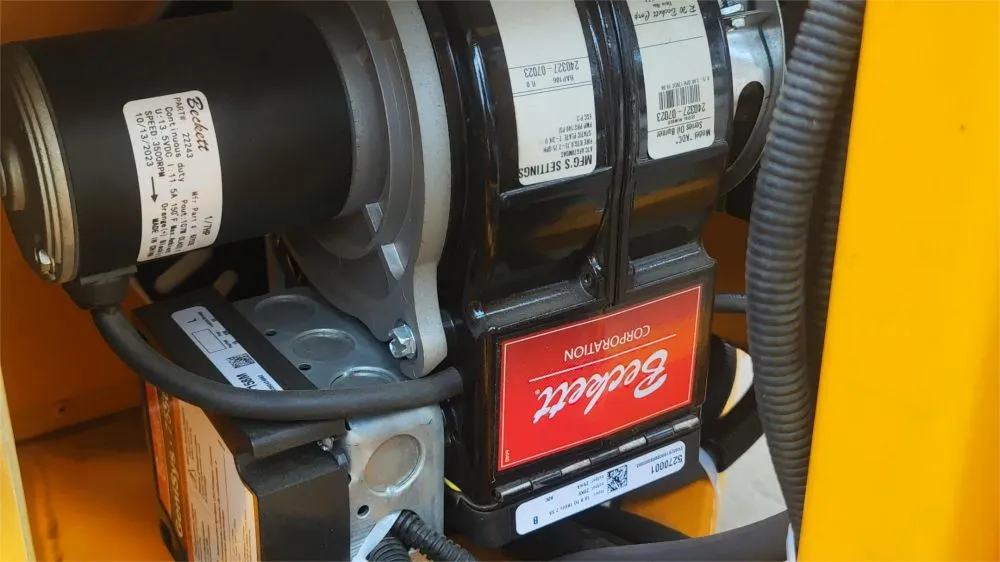

| Heating System | Beckett diesel injection burner with thermal oil circulation and automatic temperature control. |
| Control System | Intelligent electronic control panel for one-click operation of different line types. |
| Material Capacity | Large 300L material tank ensures high efficiency for major road works. |
| Operator Comfort | Two seats with adjustable drive sections for flexible working on the left or right side. |
| Air Compressor | 0.6m³ L/min | Marking Method | Extrusion Application |
| Engine Power | 42Kw Diesel (4-cylinder) | Drive Unit | Hydraulic constant variable speed |
| Dimension | 4550 x 2200 x 2550 mm | Weight | ~2800KG |

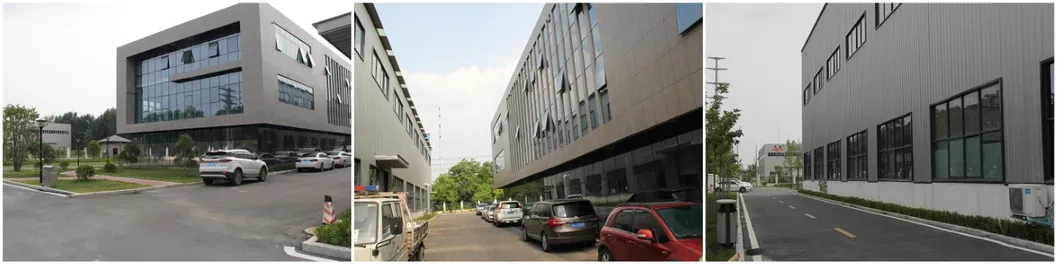

With three specialized machinery factories and a total construction area of 100,000 square meters, we focus on the R&D and production of road marking, clearing, and maintenance machinery.

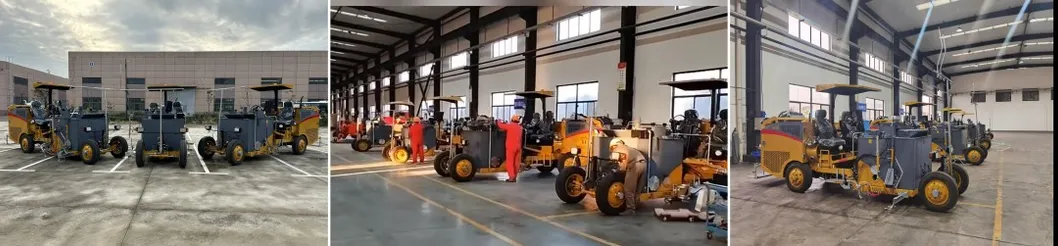

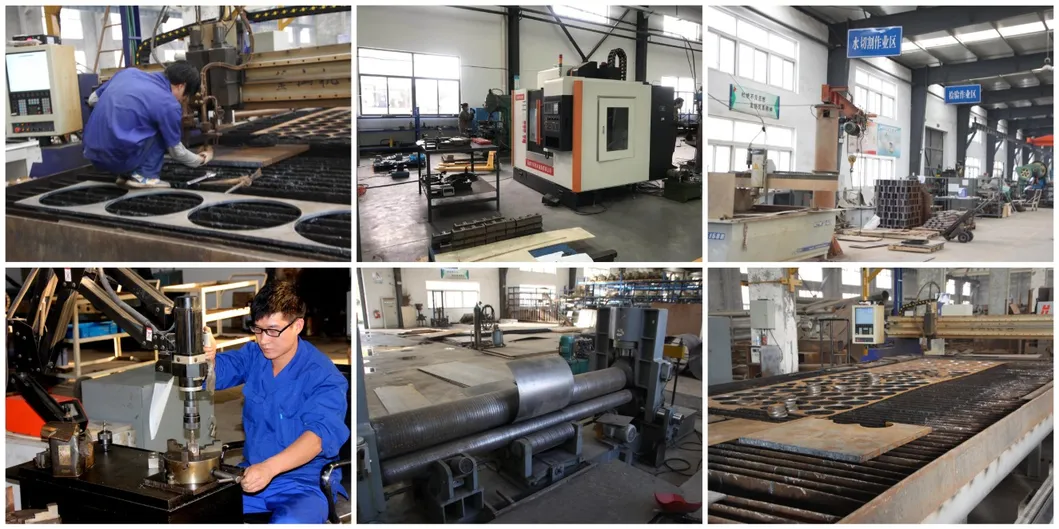

Our team consists of nearly 100 professional engineering design talents and a large pool of industrial workers, supported by over 30 sets of professional mechanical processing equipment.
Our products are currently exported to over 35 countries across Southeast Asia, South America, the Middle East, North Africa, and Europe, serving as a reliable partner for global infrastructure projects.
