Original Mtl Isolation Safety Barrier Mtl4511c

Customization:	Available
Transport Package:	Boxes
Specification:	1-10kg

Send Inquiry

Product Description

Basic Information

Model NO. MTL4511C

Origin Taiwan China

HS Code 8481201000

Production Capacity 50,000 PCS/Year

★

Product Features

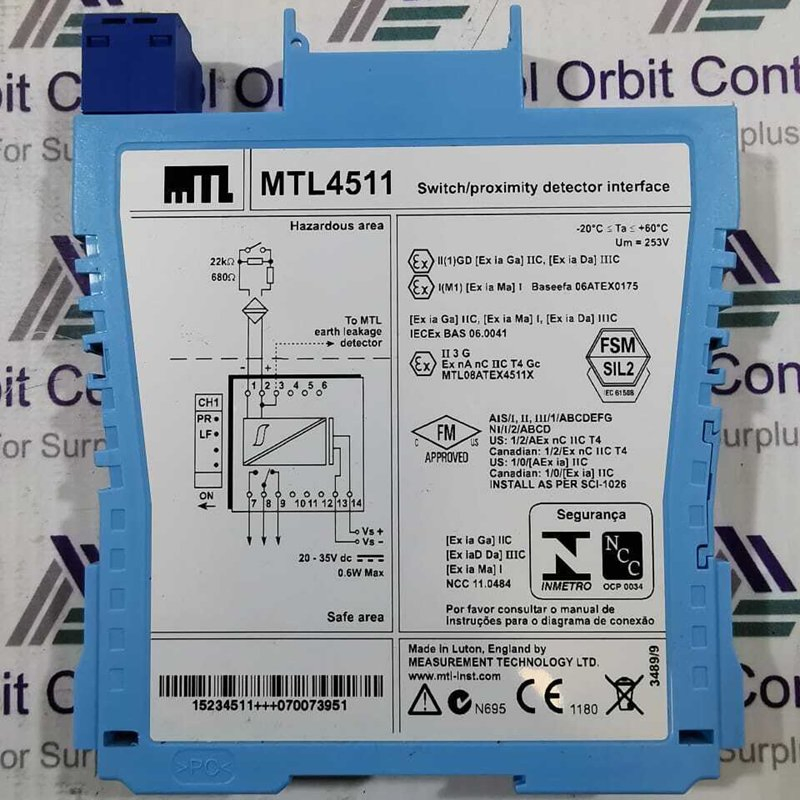

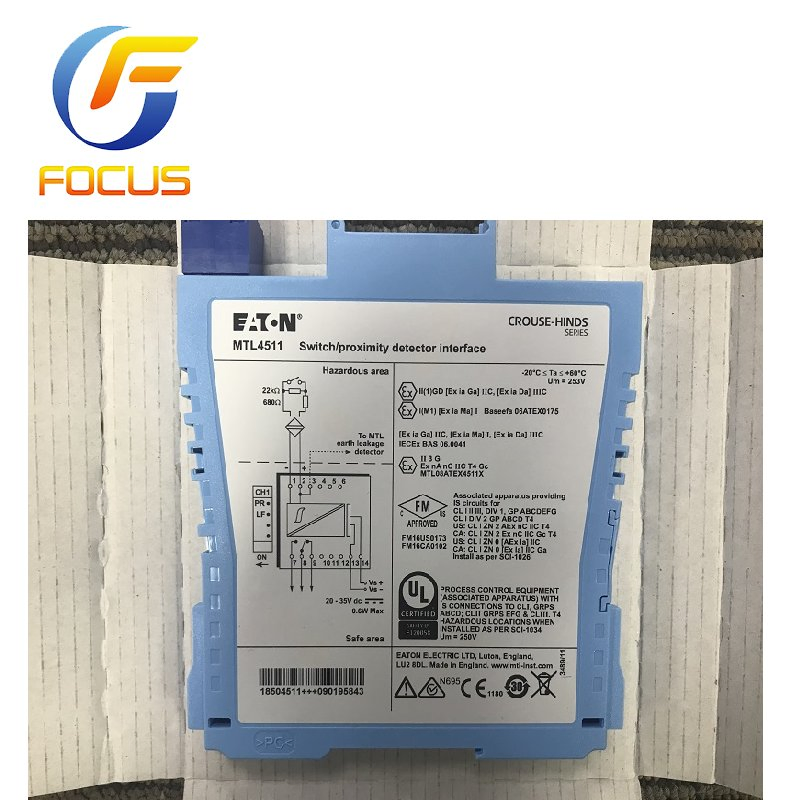

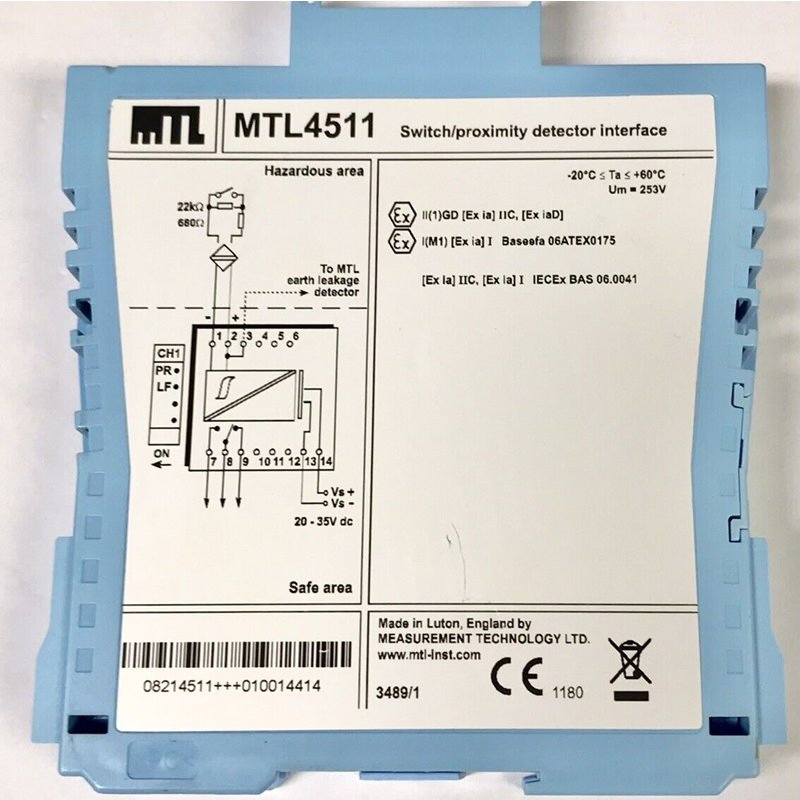

The MTLx511 enables a safe-area load to be controlled by a switch or proximity detector located in a hazardous-area. When selected, open or short circuit conditions in the field wiring are detected by the line fault-detect (LFD) facility and also indicated on the top of the module. Phase reversal for the channel is selected by a switch on the side of the module and output is provided by changeover relay contacts.

✔

Technical Specifications

Number of channels: One

Location of I/P converter: Zone 0, IIC, T4-6 hazardous area

Working range: 4 to 20mA

Digital signal bandwidth: 500Hz to 10kHz

Maximum load resistance: 800Ω (16V at 20mA)

Minimum load resistance: 90Ω

Output resistance: > 1MΩ

Under range: 1mA

Over range: 24mA (load ≤ 520Ω)

LED indicator: Green (Power indication)

Current consumption: 35mA at 24V dc

Transfer accuracy: Better than 20μA

Temperature drift: < 1.0μA/°C

Circuit ripple: < 40μA peak-to-peak

Frequently Asked Questions

What is the primary function of the MTL4511C?

The MTL4511C is designed to control safe-area loads using switches or proximity detectors located within hazardous areas, ensuring operational safety.

How does the module handle wiring faults?

It features a Line Fault Detect (LFD) facility that identifies open or short circuit conditions in the field wiring, with indicators located on top of the module.

What is the standard working signal range?

The module operates within a standard 4 to 20mA range, with under-range capability at 1mA and over-range up to 24mA.

Is the output phase adjustable?

Yes, phase reversal for the channel can be easily selected using a dedicated switch located on the side of the module.

What does the green LED light signify?

The green LED indicator on the module is used for power indication, confirming that the unit is receiving active power.

What is the transfer accuracy of this module?

At a standard temperature of 20°C, the MTL4511C provides high precision with a transfer accuracy better than 20μA.
