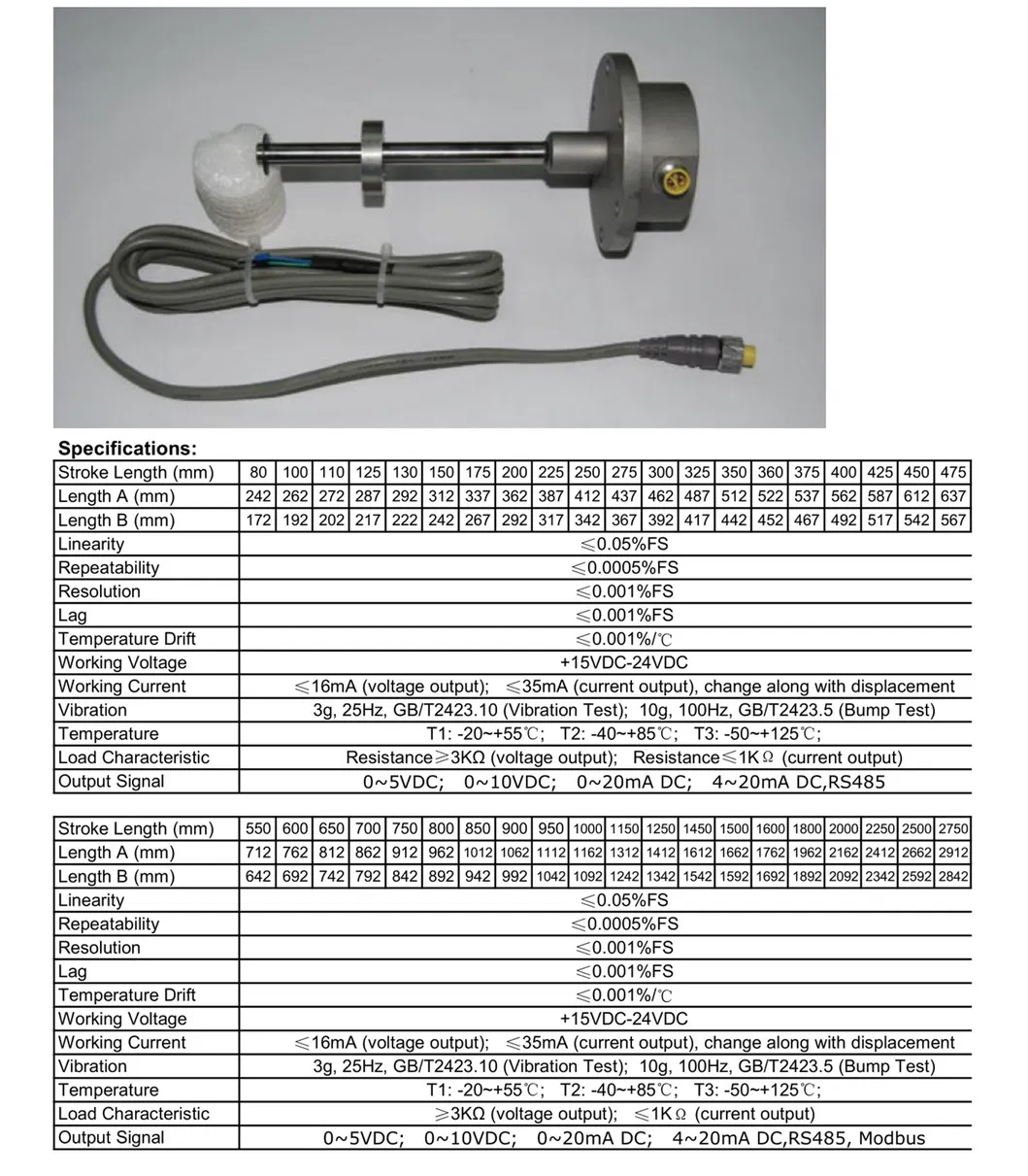

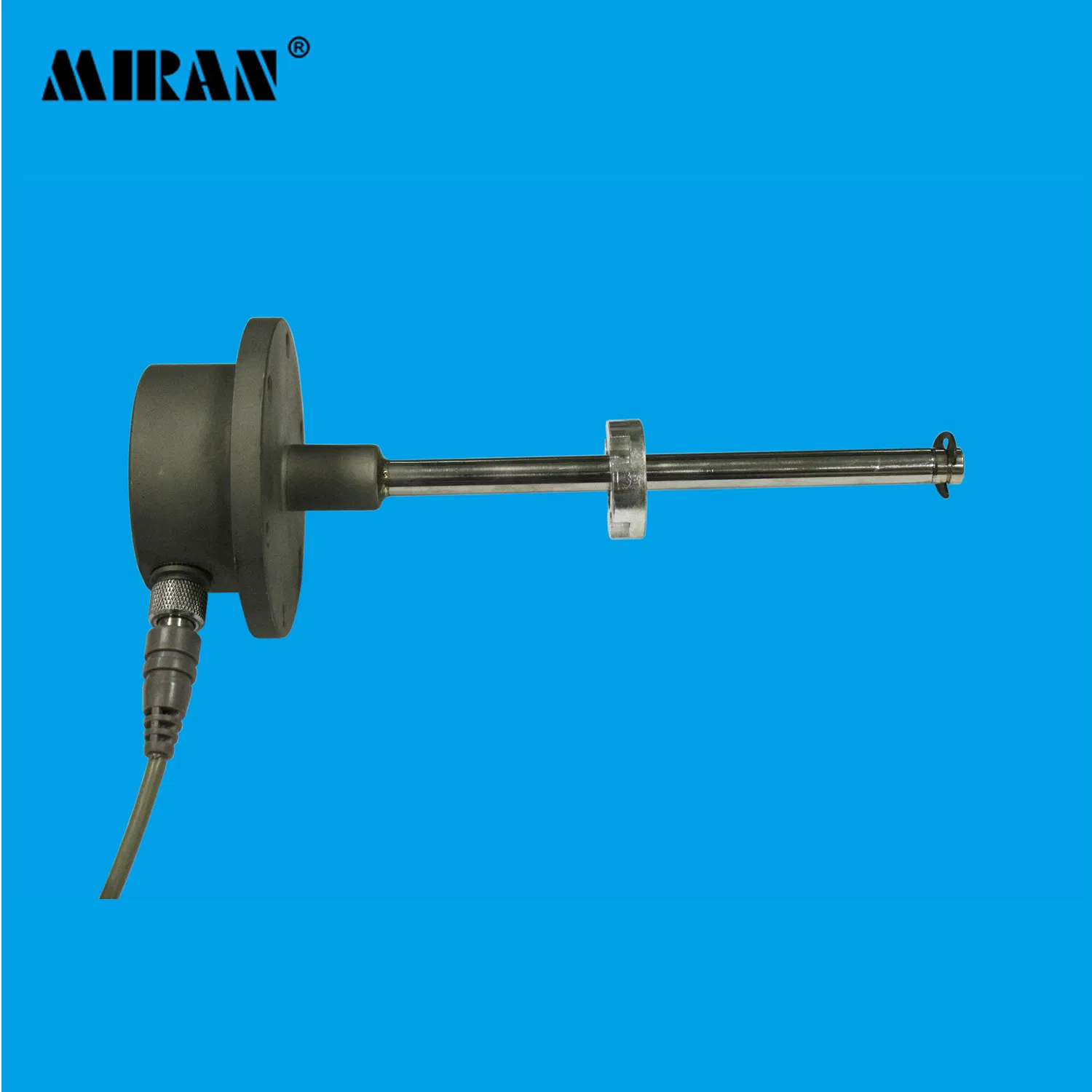

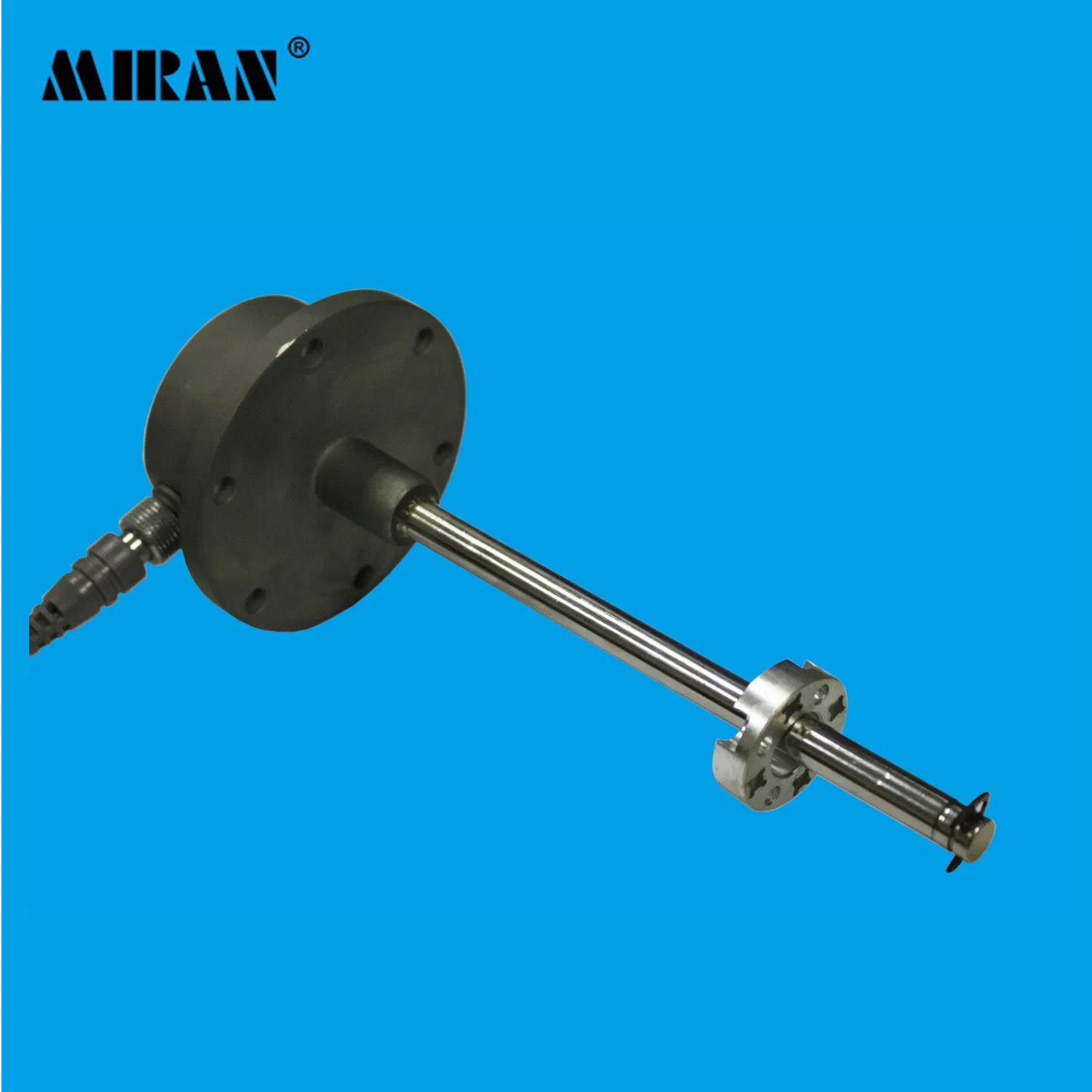

Magnetic Liquid Resistive Fuel Level Sensor
Attention: The stroke of this product is 500mm. The stroke can be customized from 80mm to 3000mm. Available signal outputs: 0-5v, 0-10v, 4-20ma, RS485.
Our products are widely utilized across various industrial sectors to ensure precision and reliability in motion control and level measurement.
- Injection molding machines & Die casting machines
- Rubber and footwear machinery
- EVA injection and bottle blowing machines
- Woodworker machines & Hydraulic machinery
- Level control and suspension stroke control
- Construction and seaport machinery
- Industrial robots
❓ Frequently Asked Questions
What is the measurement range of the MTL2 sensor?
The standard stroke is 500mm, but it can be fully customized within the range of 80mm to 3000mm to suit your specific requirements.
What types of signal outputs are supported?
The sensor supports multiple output signals including 0-5V, 0-10V, 4-20mA, and RS485 digital output.
Is this sensor suitable for harsh environments?
Yes, it features an IP67 rating and can operate in extreme temperatures ranging from -50℃ to +125℃, making it highly durable for industrial use.
What is the resolution and accuracy of the sensor?
The sensor provides infinite resolution with an accuracy grade of 0.1% and repeatability precision of 0.01mm.
What is the expected lifespan of the MTL2 series?
The sensor is designed for a very long life, capable of exceeding 100 million cycles.
What materials are used in the construction?
The sensor is housed in a high-quality Aluminum case, ensuring both lightweight properties and robust protection.
