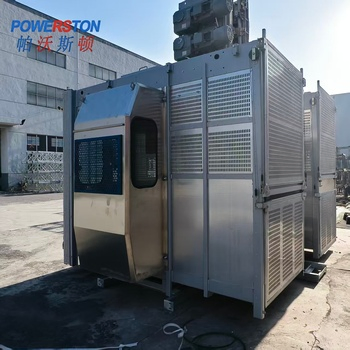

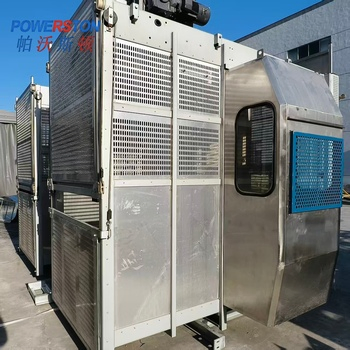

Product Description

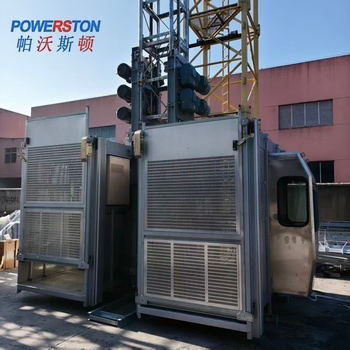

Constructiom hoist climbs up along the mast section driven by electric hoist, with 2000kg capacity each cage. By using the frequency conversion device, the mechanical wear is greatly reduced. It is widely used in construction projects, such as industrial and residential building projects, bridge construction, large chimney construction buildings and shipping building industry.
📋 Technical Parameters
| Model Low speed |
| Model |
SC100TD |
SC200TD |
SC270TD |
SC320TD |
| Rated load |
1000kg |
2000kg |
2700kg |
3200kg |
| Lifting speed |
36m/min |
| Cage dimension |
3.0m(L)*1.3m(W)*2.5m(H) or customized |
| Motor power |
2*11kw / 2*2*11kw |
3*11kw / 2*3*11kw |
3*15kw / 2*3*15kw |
3*18.5kw / 2*3*18.5kw |
| Model Medium speed |
| Model |
SC100GZ |
SC200GZ |
SC270GZ |
SC320GZ |
| Rated load |
1000kg |
2000kg |
2700kg |
3200kg |
| Lifting speed |
0-63m/min |
| Motor power |
2*15kw |
3*18.5kw / 2*3*15kw |
3*22kw / 2*3*18.5kw |
2*3*22kw |
| Model High speed |
| Model |
SC100G |
SC200G |
| Rated load |
1000kg |
2000kg |
| Lifting speed |
0-96m/min |
| Motor power |
2*2*22kw |
| Lifting height |
100M |
Frequently Asked Questions
What is the maximum load capacity for these hoists?
Depending on the model, the rated load capacity ranges from 1000kg (1T) up to 3200kg (3.2T) per cage.
Can the cage dimensions be customized for specific projects?

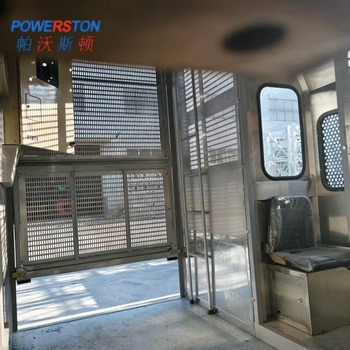

Yes, while the standard dimension is 3.0m x 1.3m x 2.5m, we offer customized cage sizes to meet your specific construction requirements.
What are the benefits of the frequency conversion device?
The frequency conversion (VFD) device allows for smoother starts and stops, which greatly reduces mechanical wear and increases the lifespan of the motor and drive system.
What is the maximum lifting speed available?
We offer different speed categories: Low speed (36m/min), Medium speed (up to 63m/min), and High speed models that can reach up to 96m/min.

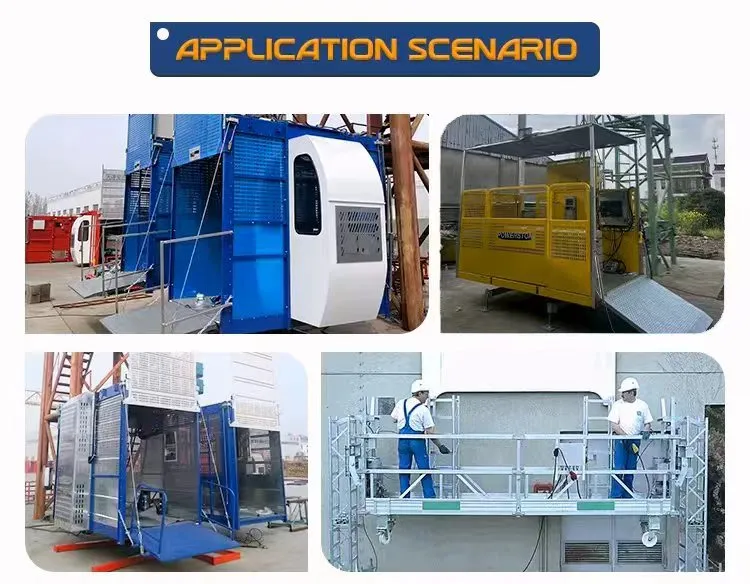

In which environments can this construction hoist be used?
It is widely utilized in industrial and residential building projects, bridge construction, large chimney installations, and the shipping building industry.
What certifications does the equipment carry?
Our equipment is manufactured to high standards and has obtained ISO9001:2008, CE, and EAC certifications to ensure safety and quality.
