China factory refractory MTL-II for alternative fuel cement kiln

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

MTL

Application Area

Sintering Zone in Rotary Kiln

Size

Customer Made

Bulk Density

2.9-3.0g/cm3

Apparent Porosity

17%

Tsr 950℃

100 Cycle

Rul

1650-1700℃

CCS MPa

Feature

Long Time Materials

Type

Refractory Material

Material

Magnesia-Hecynite

Transport Package

Pallet

Specification

MgO, Al2O3, SiO3, Fe2O3, CaO

HS Code

6902200000

Production Capacity

100,000 tons

📝 Product Description

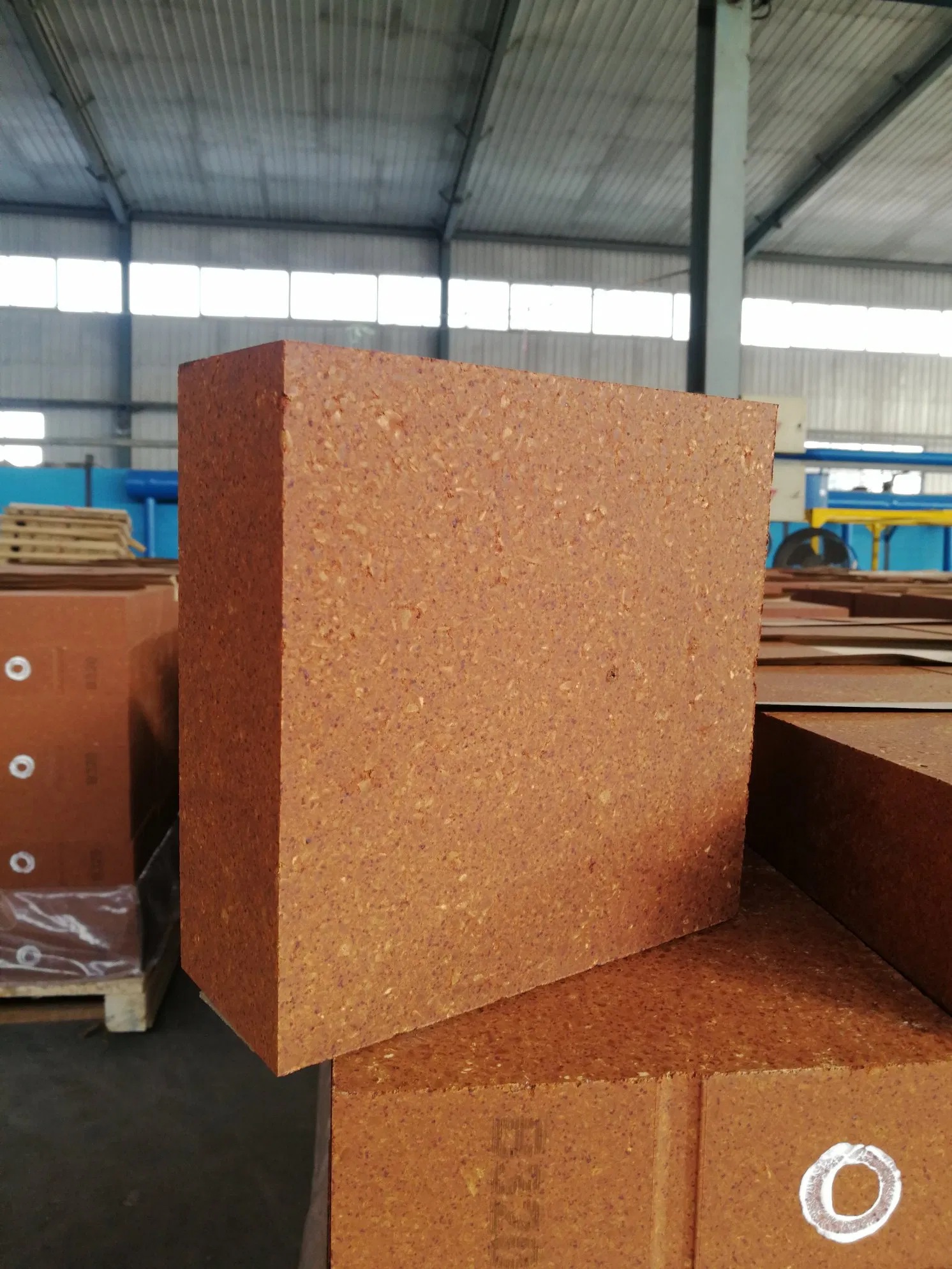

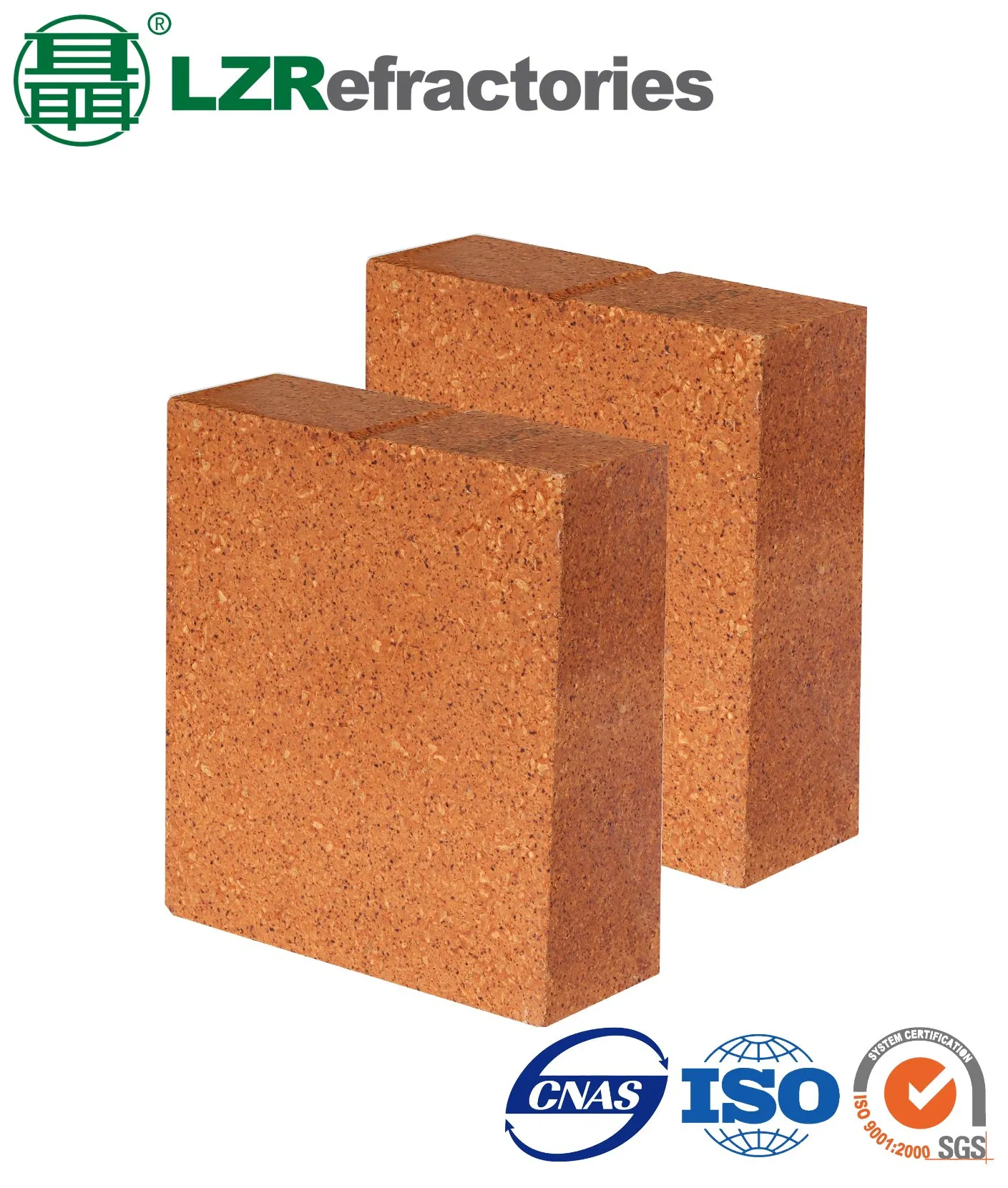

Magnesia hercynite spinel bricks are newly developed chrome-free refractories for Cement Rotary Kilns. To serve under severe conditions, these magnesia-hercynite spinel bricks provide excellent mechanical strength, superior resistance to thermal shock, and high resistance to chemical attack by volatile alkanes and slag.

Manufactured and designed under strict quality control, the MTL series bricks meet the requirements of various service conditions and are widely used in global cement projects.

⭐ Key Features

Superior synthetic purity and activity of sintered hercynite compared to fused alternatives.
Outstanding formation of a uniform and stable coating.
Excellent thermal shock stability through crystal spinel precipitation.
Low thermal conductivity: kiln shell outside temperature maintained between 230~280ºC.

🎯 Application

📍 Specifically designed for the Sintering zone of cement rotary kilns.

📊 Technical Properties

Specifications	Unit	Spec Range	Typical Value
MgO	%	≥85	85 - 88
Al2O3	%	-	4 - 6
SiO2	%	-	4
Fe2O3	%	-	0.7
CaO	%	-	1.4
Physical Properties
Bulk Density	g/cm3	≥2.9	2.9 - 3.0
Apparent Porosity	%	≤17	14 - 17
Thermal Shock Resistance (950 °C)	cycle	≥100	100
Refractoriness Under Load	°C	≥1650	>1650
Thermal Expansion (1000 °C)	%	-	1.3
Cold Crushing Strength	MPa	≥45	60
Thermal Conductivity (300 °C)	W/mK	-	3.5

Note: Data represented are average values measured via standard test methods and may vary according to production conditions.

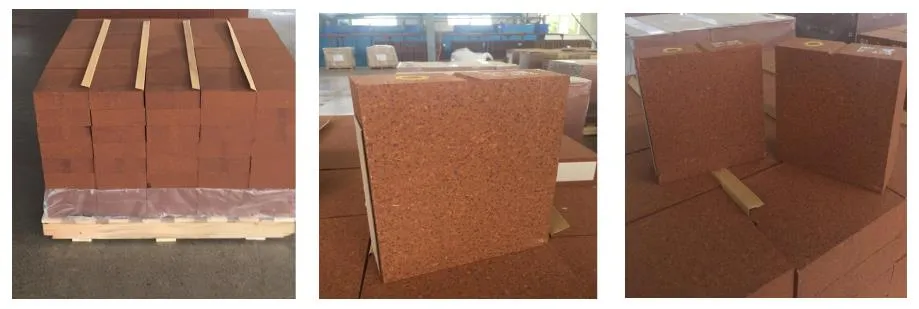

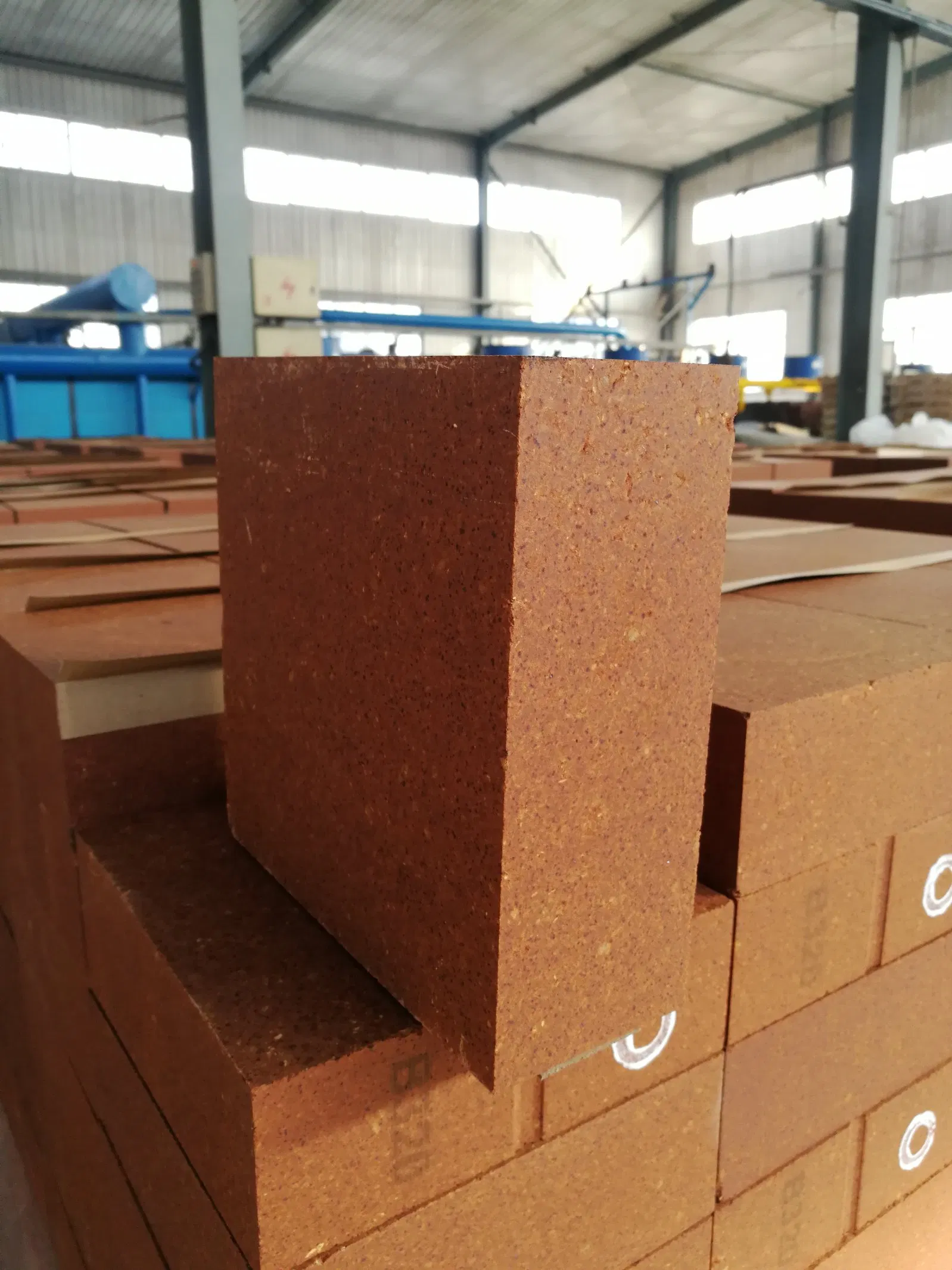

🖼️ Product Showcase

$Refractory MTL-II$

📦 Packaging & Quality Control

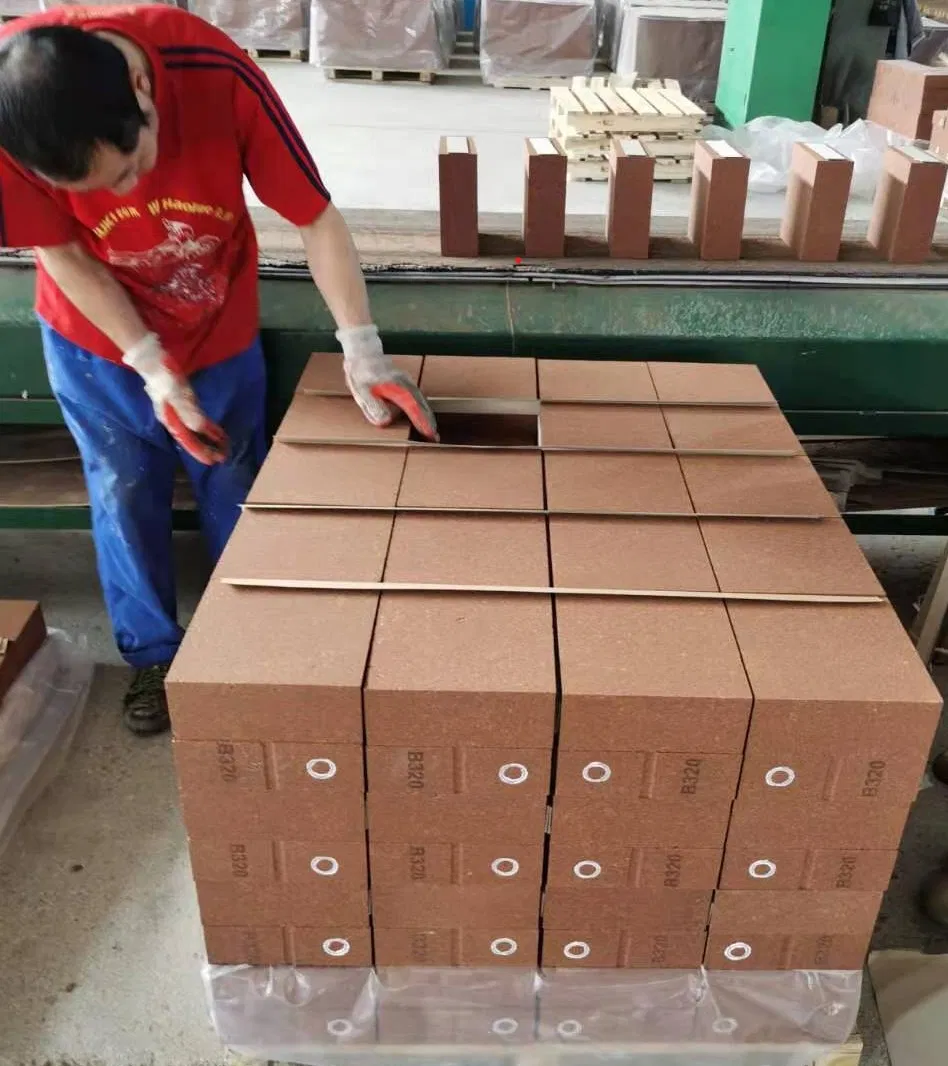

✅ Packing: Sea-worthy wooden pallets, shrink plastic wrapped, and corrugated board protection.

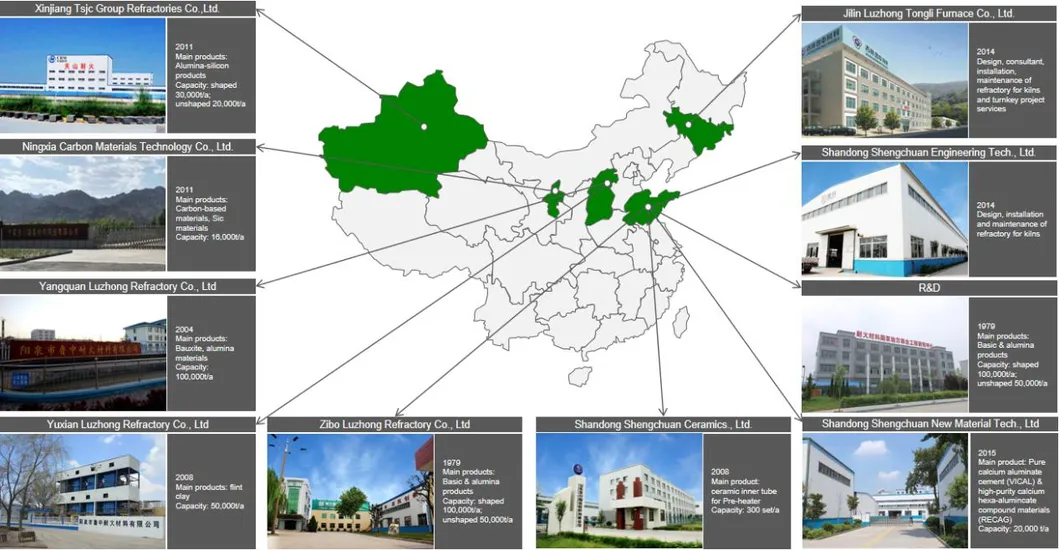

🏢 Manufacturing Profile

Our facility was established in 1979 and has evolved into a leading professional manufacturer of refractories for cement kilns with a total production capacity of 200,000 t/a. We are among the top 3 suppliers in the industry and were the first to invent Magnesia Hercynite bricks in our region.

🛠️ Professional Services

Comprehensive refractory lining design for industrial kilns.
Efficient and economical material recommendations.

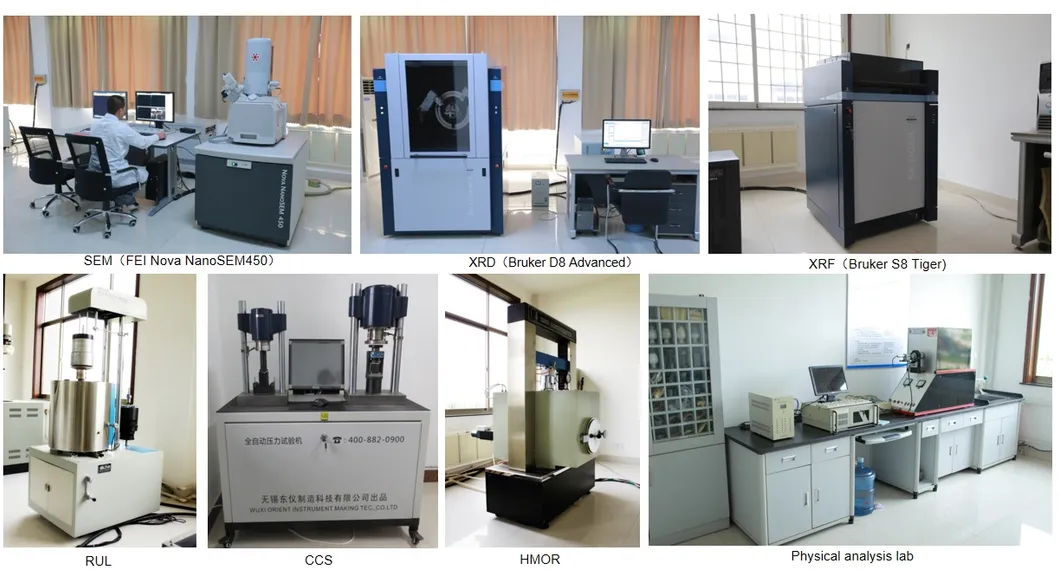

Sample property testing reports from authorized institutes (SGS/CNAS).
On-site installation supervision, inspection, and evaluation.
Ovality measurement for rotary kiln shells during operation.

📜 Certificates & Global Presence

💡 Frequently Asked Questions

Do you provide free samples?

Yes, free samples are available. Generally, the buyer is responsible for the delivery costs.

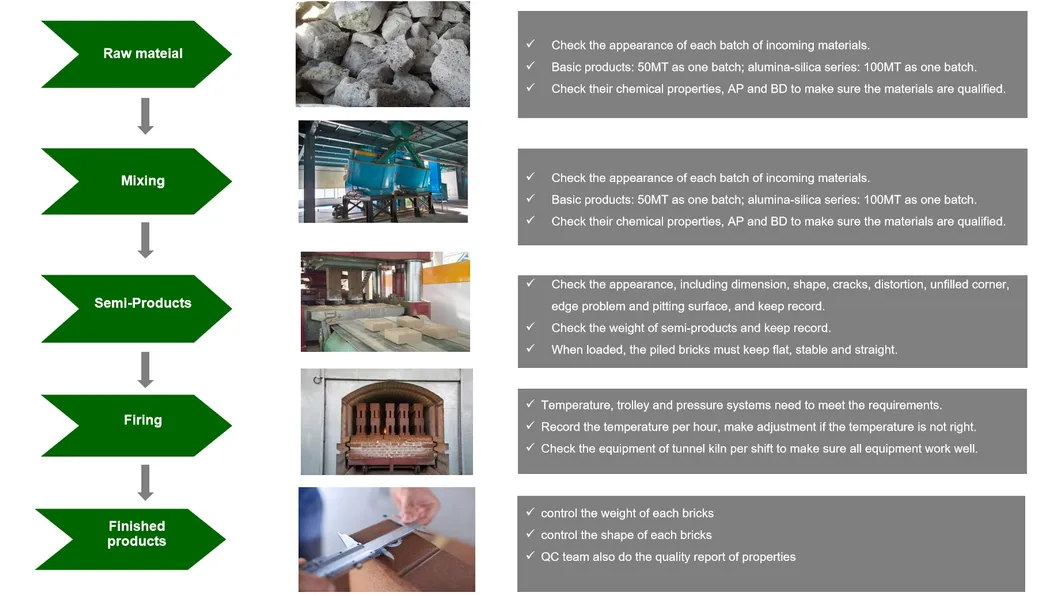

How is quality controlled during production?

We maintain a complete QC system for chemical composition and physical properties throughout every processing stage. All goods are tested post-production, and quality certificates are provided with shipment.

What is the standard lead time for orders?

During peak season (Nov-Feb), delivery is within 60 days of advance payment. During normal season (Feb-Oct), it is typically within 30 days.

What are the accepted payment terms?

We typically accept a 30% deposit with the 70% balance against the BL copy, or via Letter of Credit (LC).

Are you a manufacturer or a trading company?

We are a dedicated manufacturer with over 40 years of history in the refractory industry.

What international standards do your products meet?

Our products comply with major international standards including ASTM, ASME, AMS, DIN, and JIS. Third-party testing is available upon request.
