Product Description

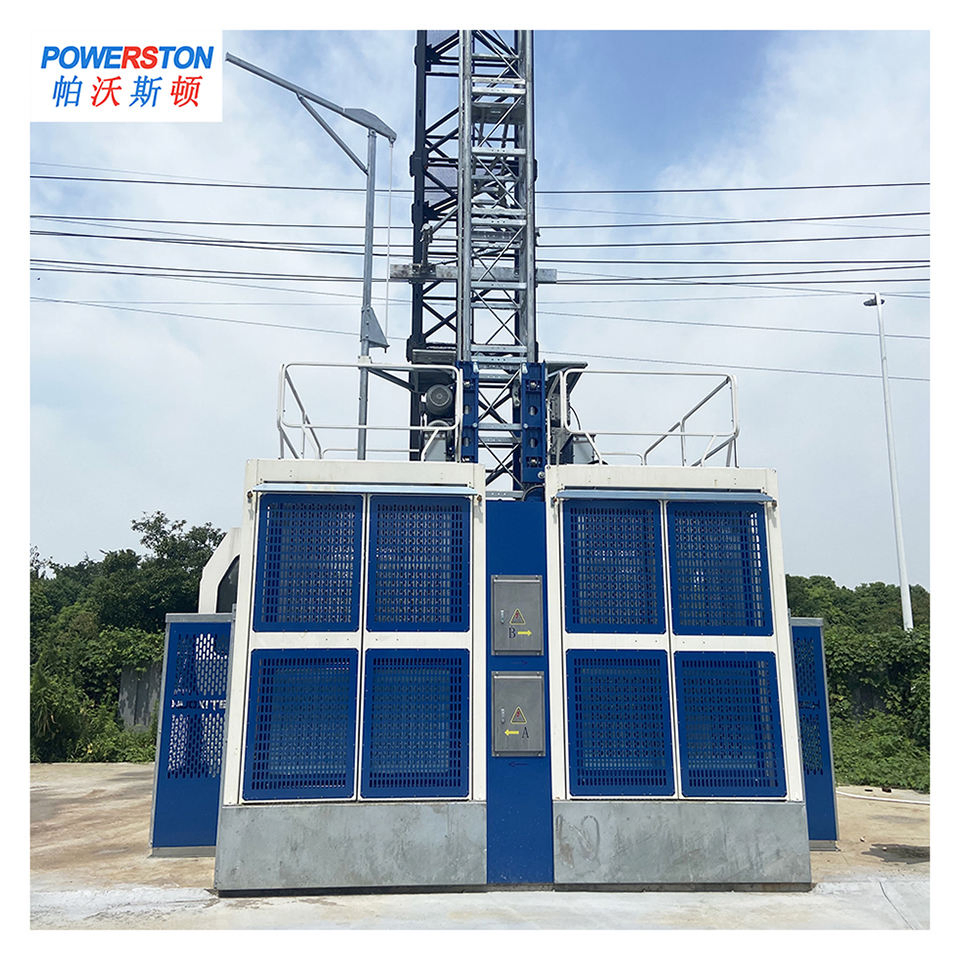

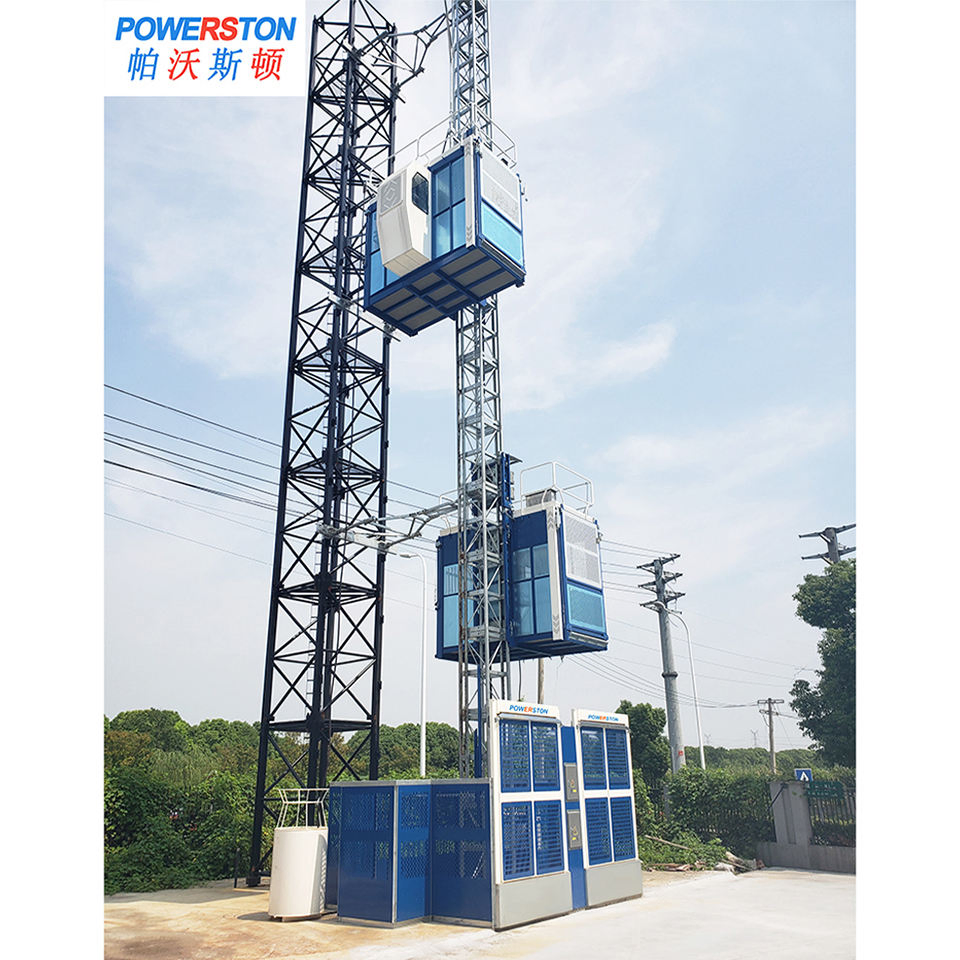

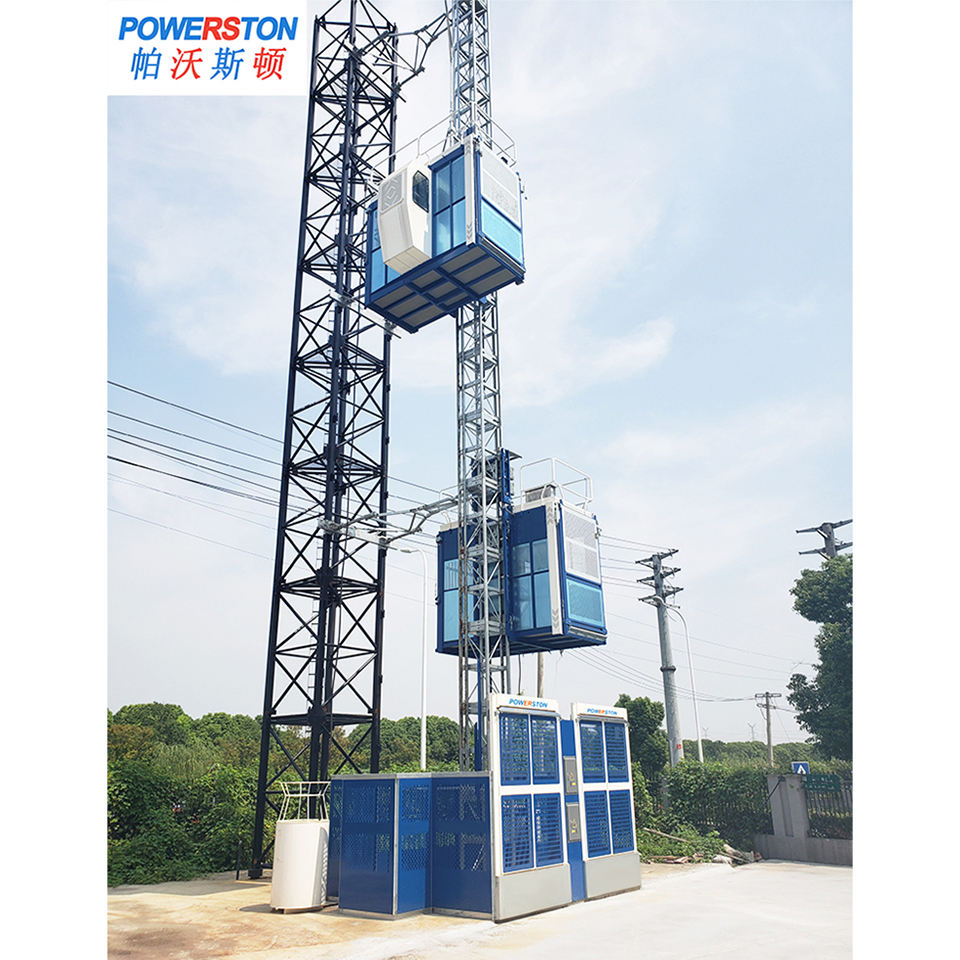

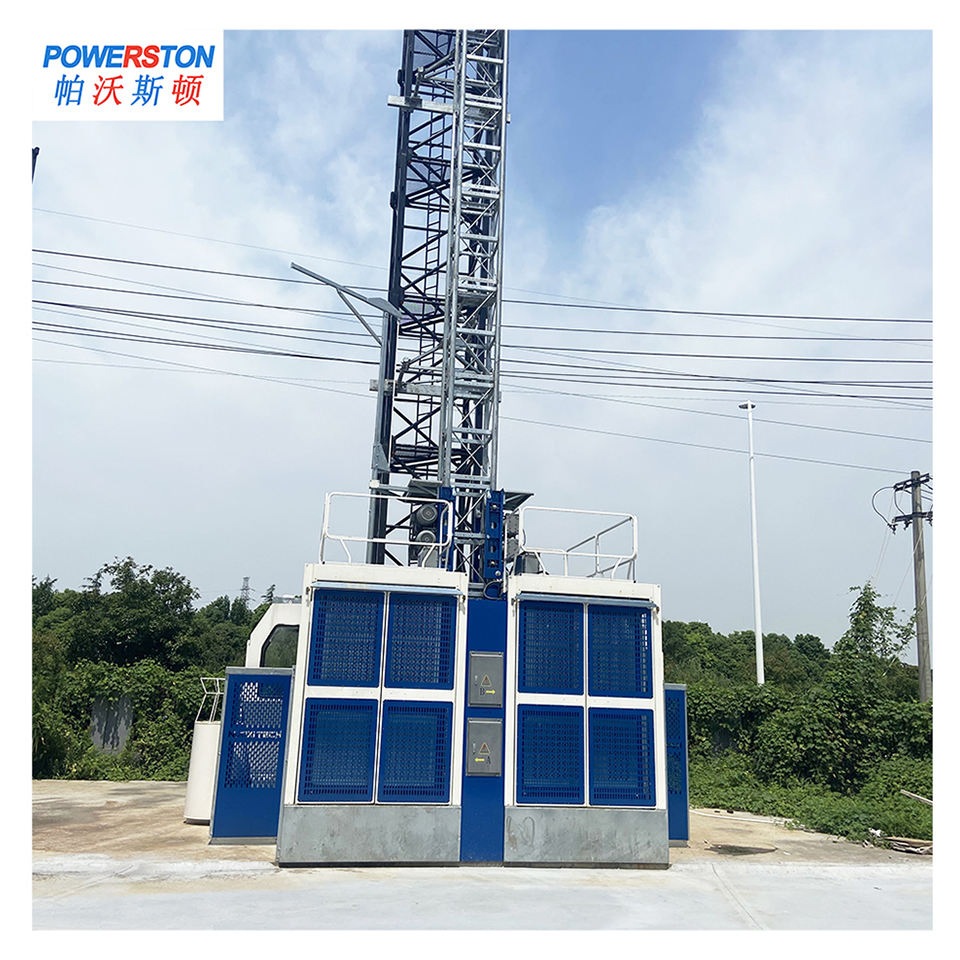

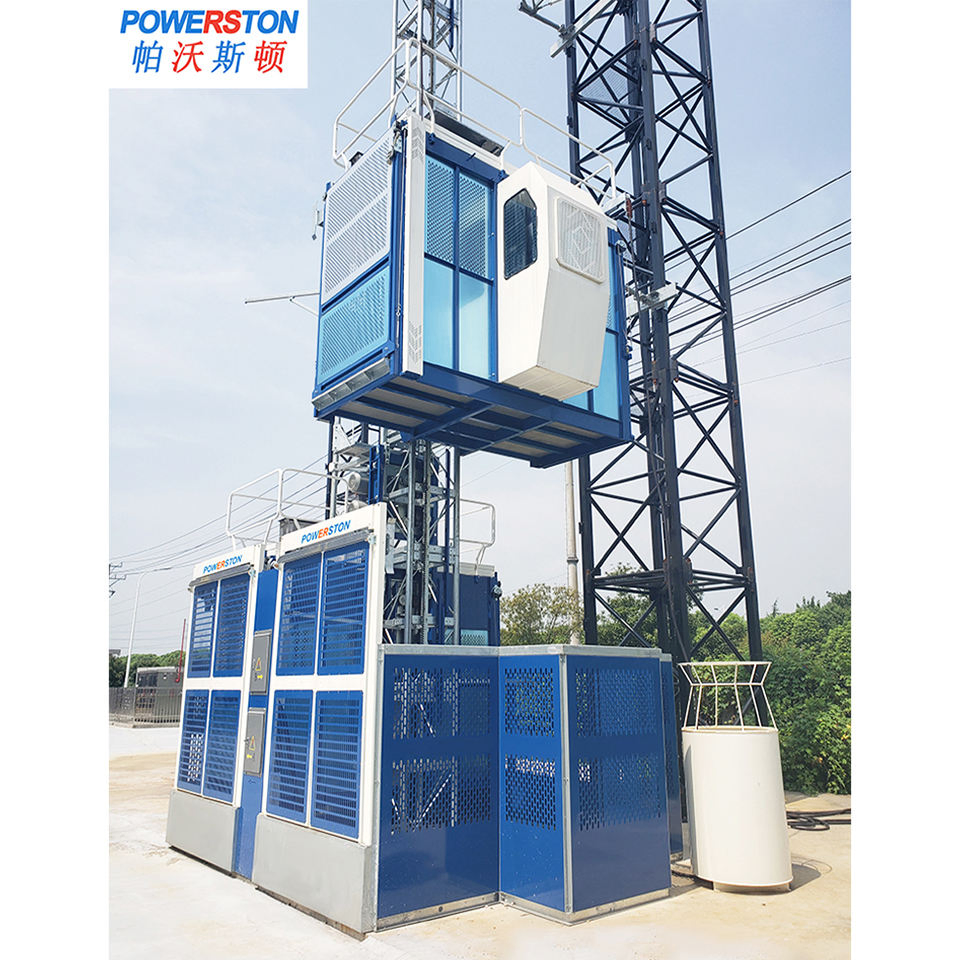

Construction hoist climbs up along the mast section driven by electric hoist, with 2000kg capacity each cage. By using the frequency conversion device, the mechanical wear is greatly reduced. It is widely used in construction projects, such as industrial and residential building projects, bridge construction, large chimney construction buildings and shipping building industry.
📊
Technical Parameters
| Model Low Speed Series |
| Model |
SC100TD |
SC200TD |
SC270TD |
SC320TD |
| Rated load (per cage) |
1000kg |
2000kg |
2700kg |
3200kg |
| Lifting speed |
36m/min |
36m/min |
36m/min |
36m/min |
| Cage Dimension |
3.0m(L)*1.3m(W)*2.5m(H) or customized |
| Model Medium Speed Series |
| Model |
SC100GZ |
SC200GZ |
SC270GZ |
SC320GZ |
| Rated load (per cage) |
1000kg |
2000kg |
2700kg |
3200kg |
| Lifting speed |
0-63m/min |
0-63m/min |
0-63m/min |
0-63m/min |
| Model High Speed Series |
| Model |
SC100G |
SC200G |
| Rated load (per cage) |
1000kg |
2000kg |
| Lifting speed |
0-96m/min |
0-96m/min |
| Motor power |
2*2*22kw |
2*2*22kw |
💡
Frequently Asked Questions

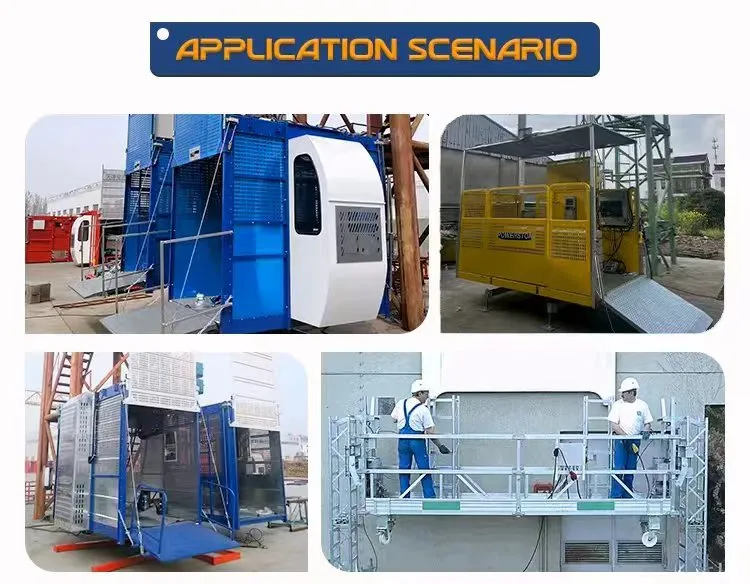

What are the primary applications for this construction hoist?
It is widely used for industrial and residential buildings, bridge construction, large chimneys, and the shipbuilding industry.
What is the maximum lifting speed available?
The high-speed series (SC100G/SC200G) can reach a maximum lifting speed of 0-96m/min.
Can the cage size be customized for specific projects?
Yes, while the standard size is 3.0m * 1.3m * 2.5m, it can be customized to meet your requirements.
What is the benefit of using a frequency conversion device (VFD)?
The VFD (Variable Frequency Drive) significantly reduces mechanical wear and provides smoother operation.
What is the standard mast section dimension?
The standard mast section measures 650mm(L) * 650mm(W) * 1508mm(H).
What is the rated load capacity per cage?
Depending on the model, the rated load capacity ranges from 1000kg to 3200kg per cage.
