2 Pole 250A Molded Case Circuit Breaker DC MCCB in Factory Price for Electrical Panel Protection

1 / 5

2 Pole 250A Molded Case Circuit Breaker DC MCCB in Factory Price for Electrical Panel Protection

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

EDM3/EDM3DP

Speed

High-Speed Circuit Breaker

Arc-extinguishing

Air

Installation

Insert

Structure

MCCB

Poles Number

2p, 3p, 4p

Voltage Ui

500V/1000V/1500V

Current

125A-250A

Certification

CE, CB, CCC, SAA

Mechanical Life

10,000

Electrical Life

2,000

HS Code

853650

💡

Product Description

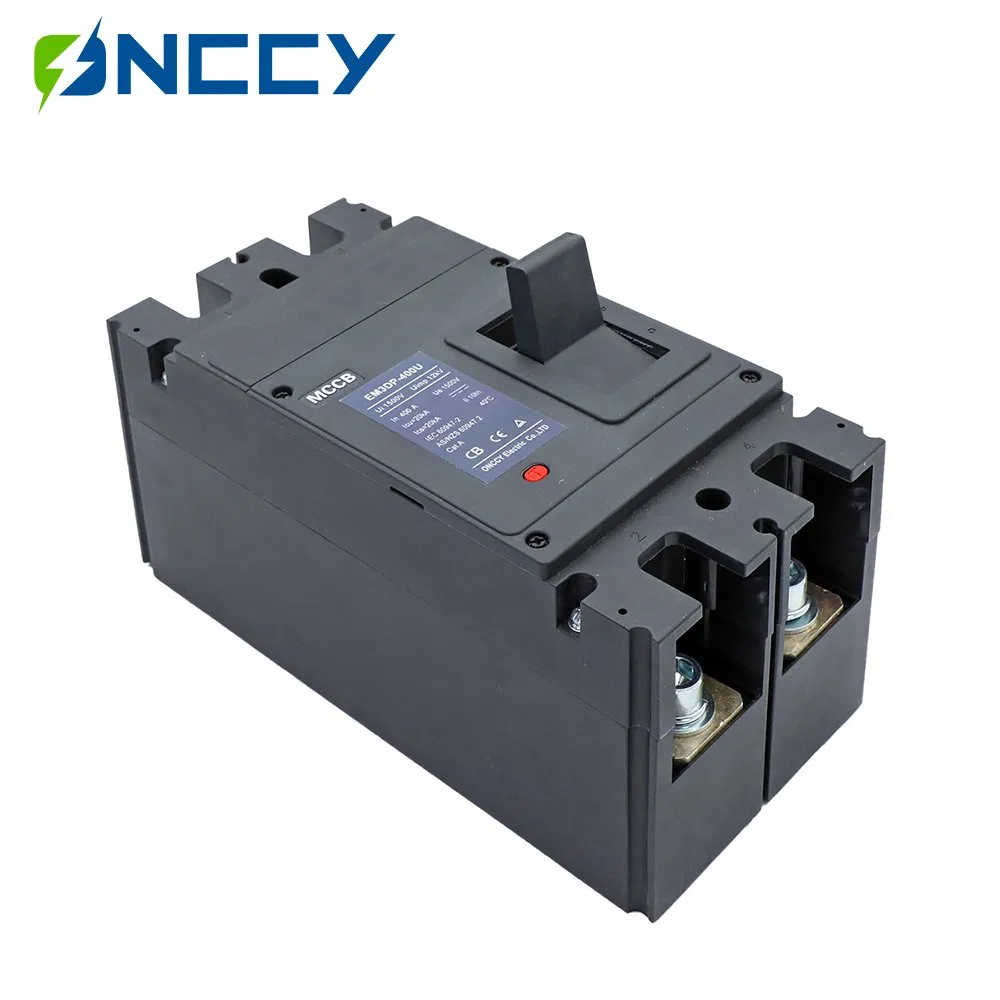

EDM3 Series PV DC Molded Case Circuit Breaker

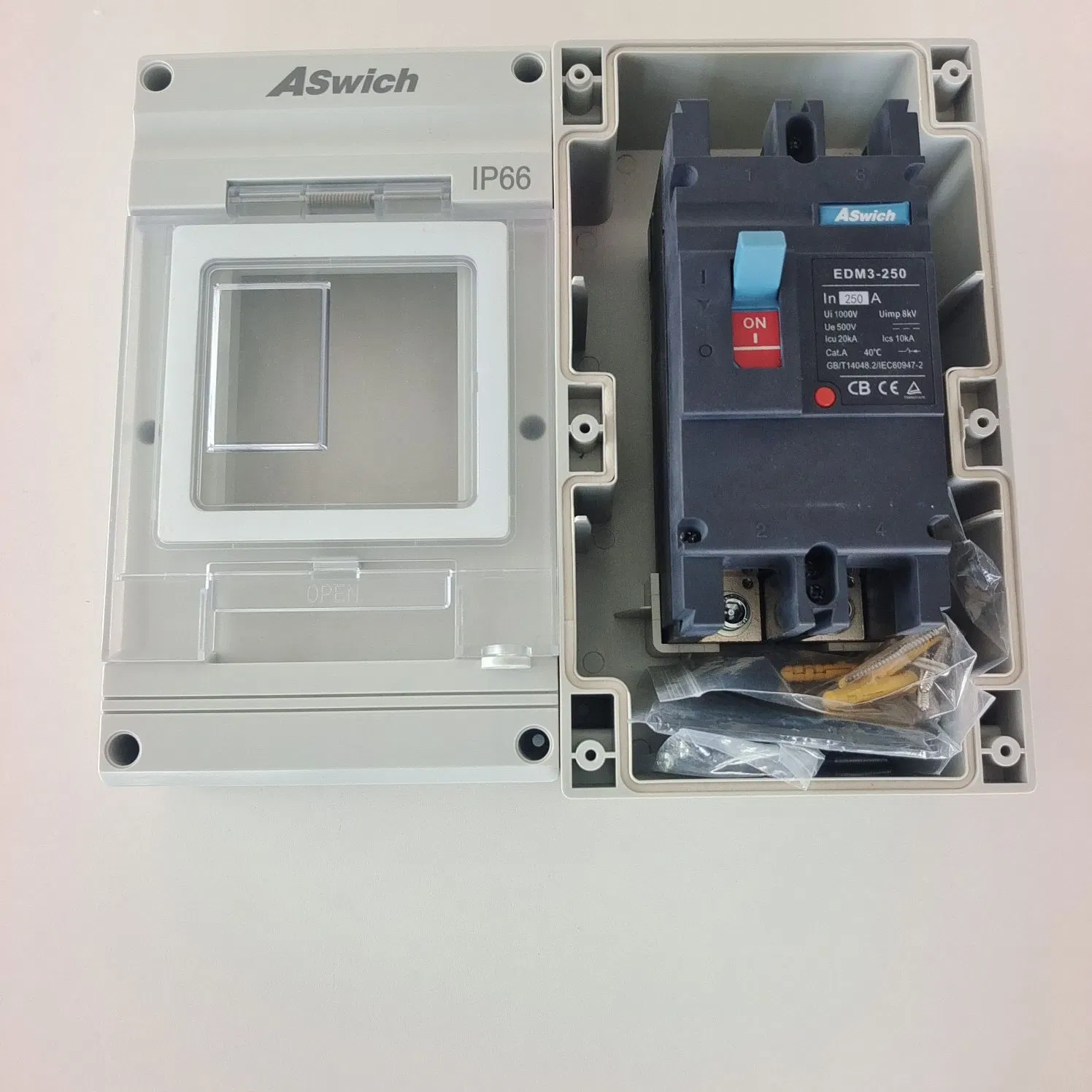

EDM3 series PV DC moulded case circuit breaker protects the battery systems and energy storage systems, with overload protection and short circuit protection. Rated voltage is 500V/1000V/1500VDC. Rated current up to 250A/320A/400A. Ensure the solar PV systems including batteries operating well and high efficiency. A IP66 and UV resistance PC enclosure is optional.

📸

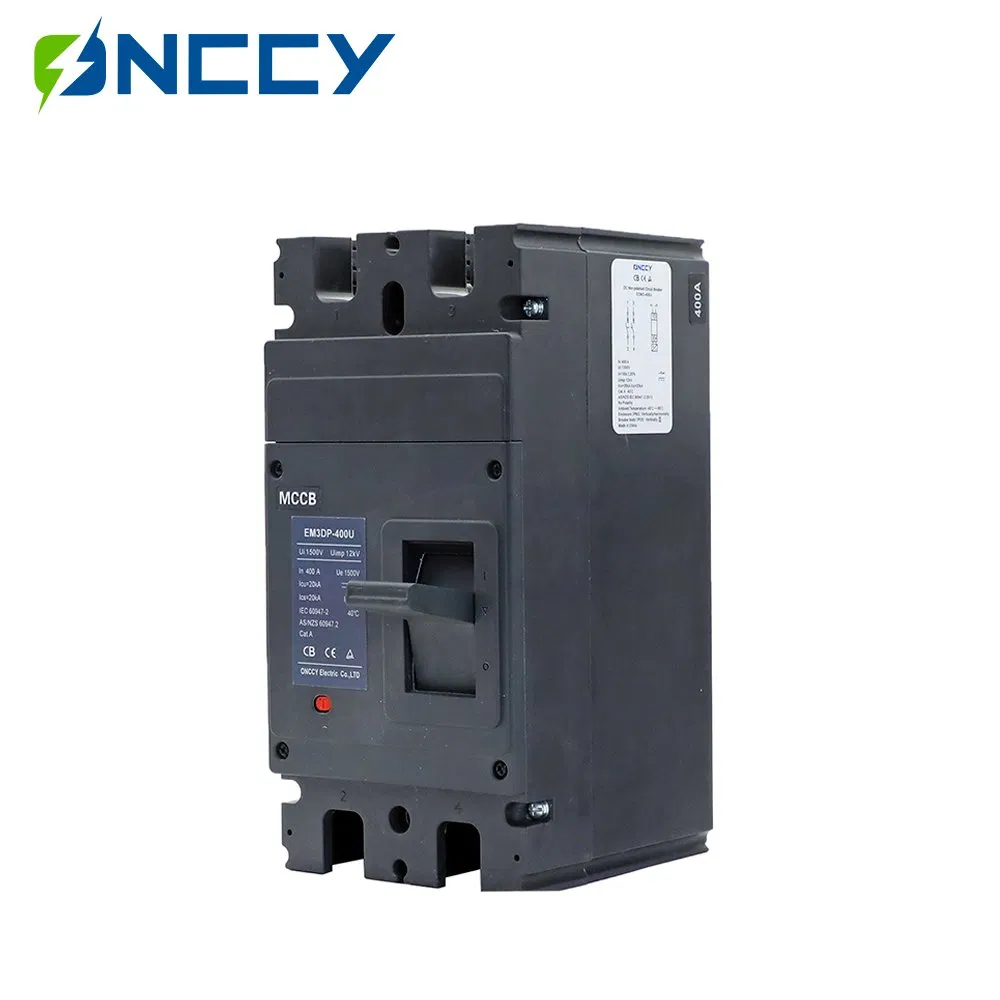

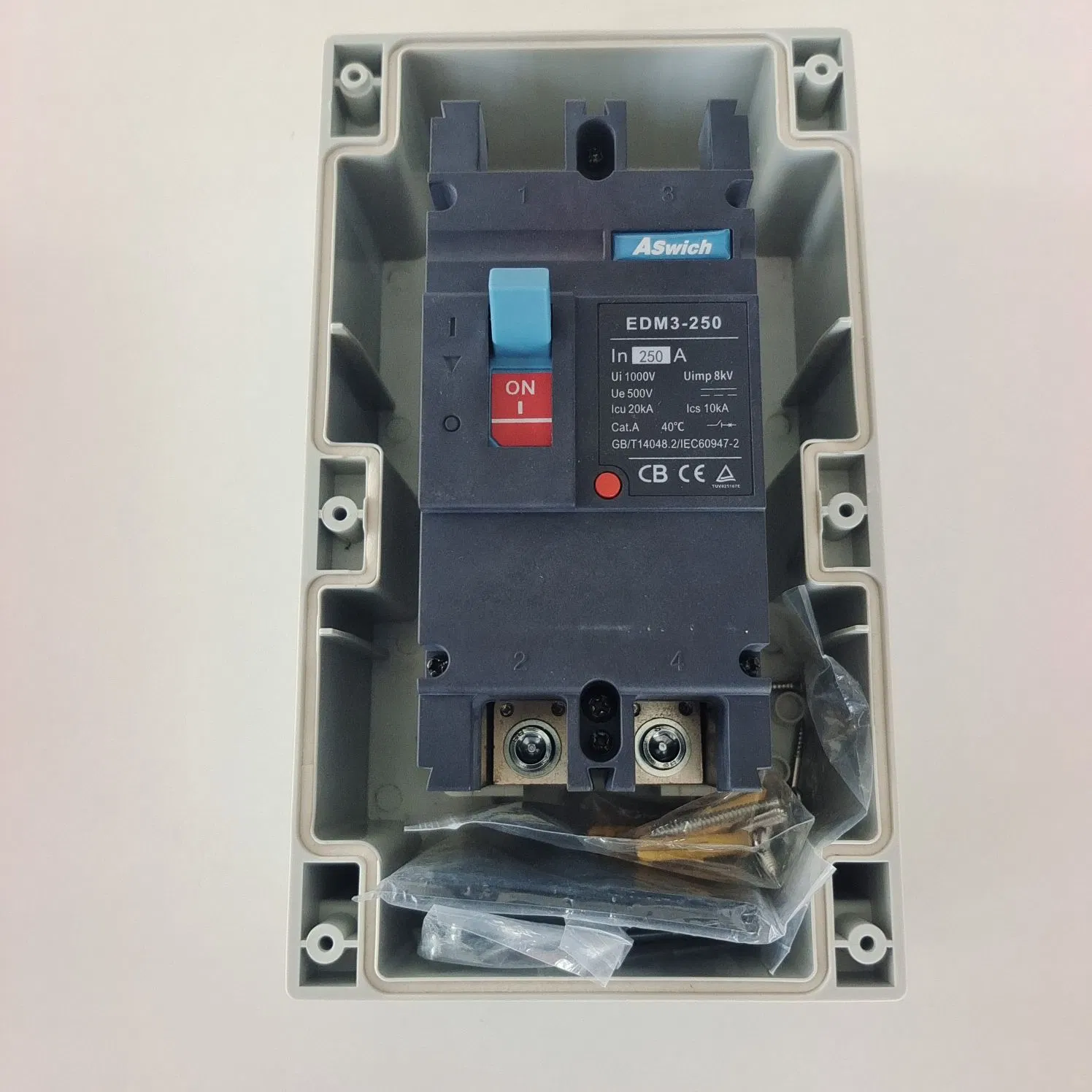

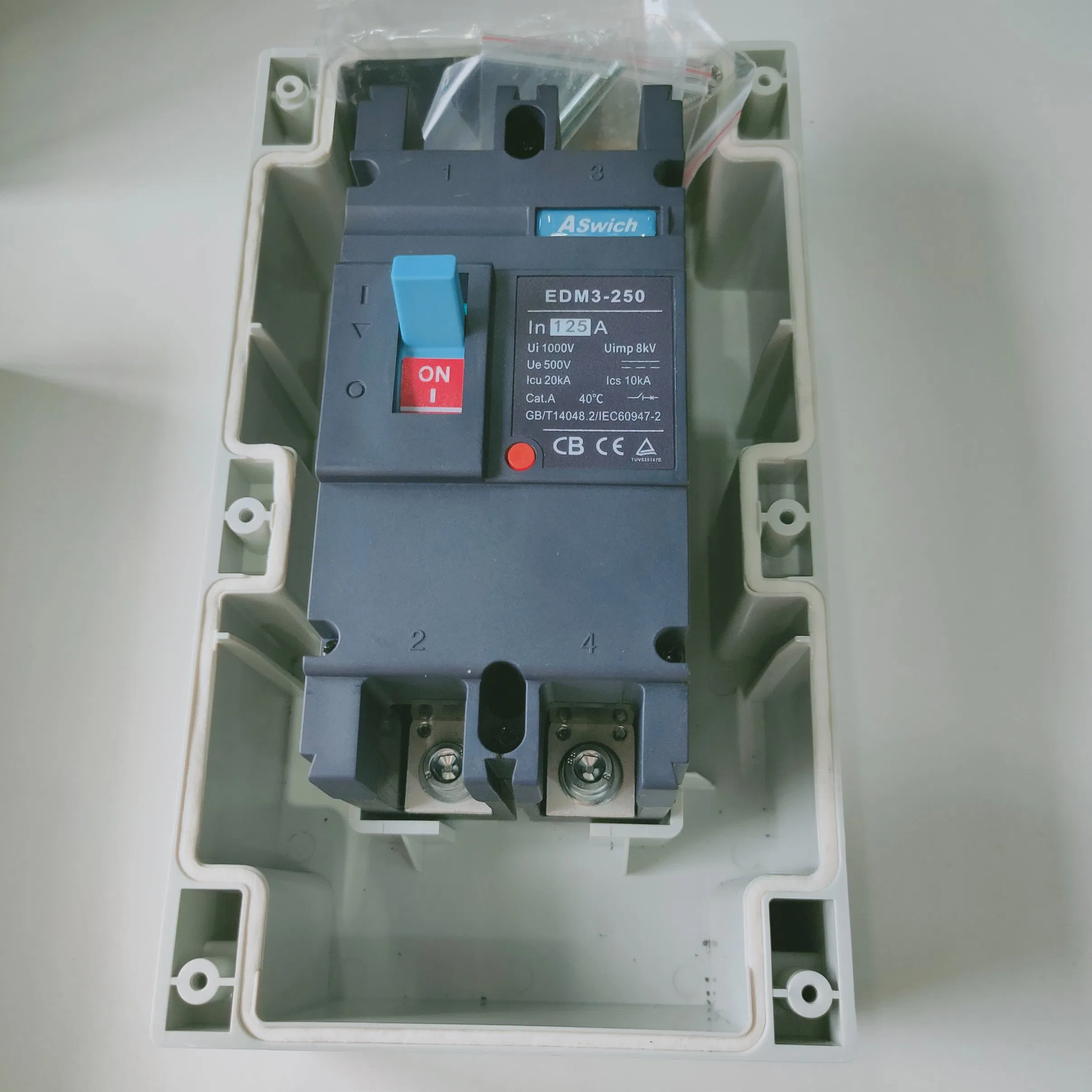

Detailed Photos

📊

Product Parameters

EDM3 Series DC Moulded Case Circuit Breaker
Model			EDM3-125	EDM3-250
No. of poles			2P	2P
Maximum frame current			125A	250A
Electrical Parameters
Rated operating voltage (Ue)		500V	500V	500V
Rated current	In(A)	60/80/100/125	125/160/200/250	-
Rated insulation voltage (Ui)		500V DC
Rated impulse withstand voltage (Uimp)		8KV
Ultimate breaking capacity (Icu)		20KA	20KA	-
Operational Environment
Standard			ICE60947-2/GB14048.2
Ambient temperature			-40ºC ~ +85ºC
